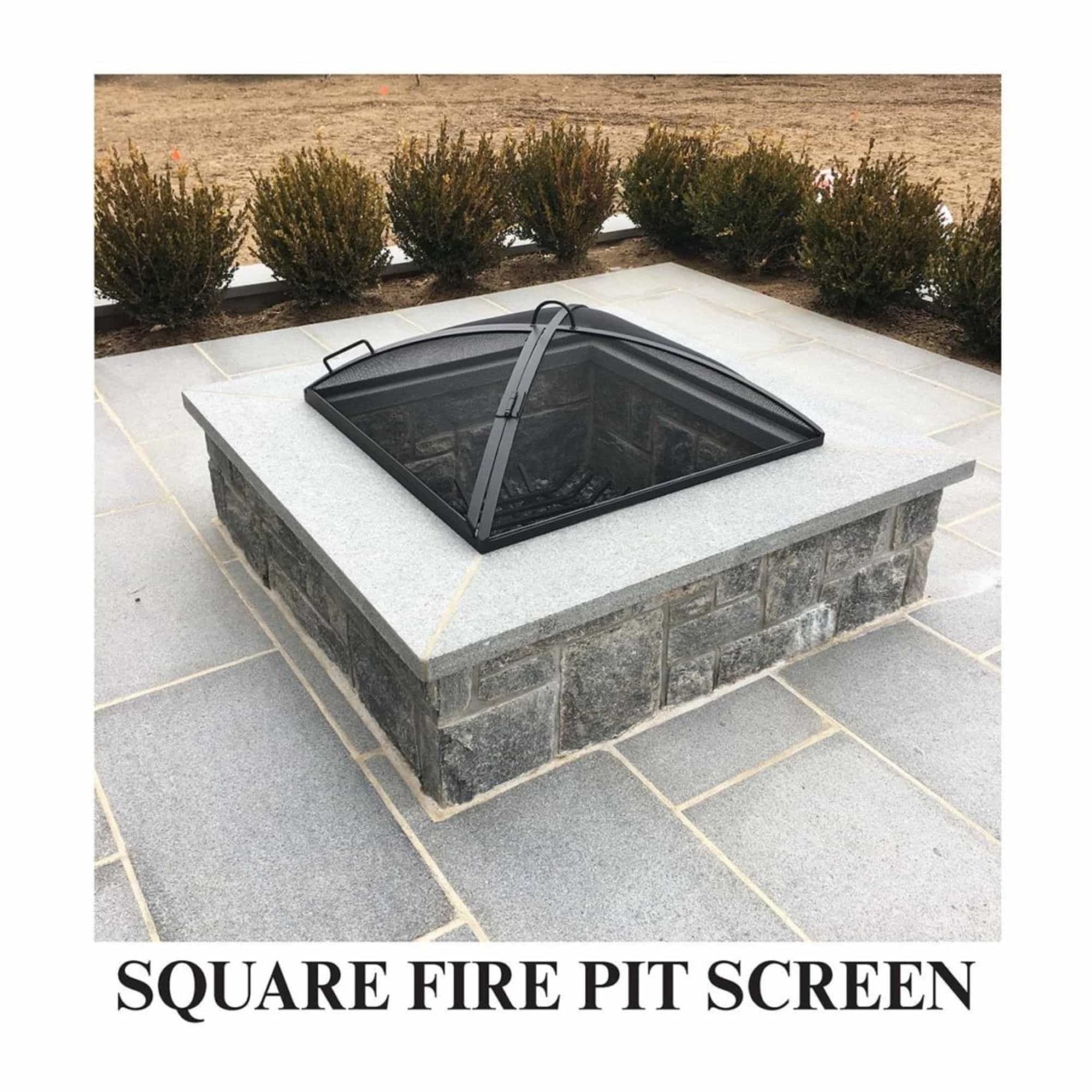

Aspen Industries Inc. Master Flame Square Low Profile Fire Pit Screen with Single Door
Free Shipping • Made to order • Ships in 10–15 Business Days
The Master Flame Square Low Profile Fire Pit Screen with Single Door provides reliable spark protection while maintaining a sleek, low-profile design for square and rectangular wood-burning fire pits. The hinged single access door allows you to easily tend the fire, add wood, and adjust logs without removing the entire screen.
Constructed with a heavy-duty solid steel framework and spark-arresting steel mesh, this fire pit screen helps contain sparks, embers, ash, and soot while allowing heat and airflow to circulate. Available in Carbon Steel, Hybrid, and 304 Stainless Steel, each screen features a high-temperature, weather-resistant black finish for long-lasting outdoor performance.
Proudly made in the USA, each screen is custom manufactured to your required dimensions for a precise fit.
Product Features
Low-Profile Design
12-inch height offers a clean, lower-profile appearance while maintaining effective spark protection.
Hinged Single Access Door
Front access door provides convenient fire management without removing the entire screen.
Heavy-Duty Construction
Built using a 1/4" × 1" solid steel flat bar framework for exceptional strength and durability.
Spark-Arresting Mesh
Constructed with 8 × 8 steel mesh using 23-gauge wire (64 openings per square inch) to help contain sparks, embers, ash, and soot.
Multiple Material Options
Available in:
- Carbon Steel
- Hybrid (carbon steel frame with stainless steel mesh)
- 304 Stainless Steel
- 304 Brushed Stainless Steel
Weather-Resistant Finish
Electrostatically applied high-temperature black finish designed for outdoor environments.
Custom Manufacturing
Each screen is custom built to your required dimensions.
Made in the USA
Manufactured in the United States using premium materials.
Specifications
| Specification | Details |
|---|---|
| Product | Master Flame Square Low Profile Fire Pit Screen with Single Door |
| Shape | Square / Rectangular |
| Screen Style | Hinged Single Access Door |
| Height | 12 inches |
| Application | Square and rectangular wood-burning fire pits |
| Materials Available | Carbon Steel, Hybrid, 304 Stainless Steel |
| Hybrid Construction | Carbon steel frame with stainless steel mesh |
| Frame Construction | 1/4" × 1" solid steel flat bar |
| Mesh Pattern | 8 × 8 openings per square inch |
| Wire Gauge | 23 gauge |
| Mesh Openings | 64 openings per square inch |
| Door Configuration | Single hinged access door |
| Handles | Two side handles and one door handle |
| Finish | High-temperature weather-resistant black finish |
| Optional Finish | Brushed finish (304 Stainless Steel only) |
| Optional Features | Second door, custom mounting tabs, custom height |
| Approximate Weight | Approximately 1 lb per inch (Example: 48" × 48" screen weighs approximately 48 lbs.) |
| Manufacturing | Made in the USA |
Sizing Information
For square and rectangular fire pits:
- Measure the inside length and width of your fire pit.
- Add 4 inches to the length.
- Add 4 inches to the width.
- The resulting dimensions are your required screen size.
Example:
Your fire pit measures 30" × 30" (inside dimensions).
Add 4 inches to each side:
- Length: 30" → 34"
- Width: 30" → 34"
Your required fire pit screen size is 34" × 34".
Perimeter Calculation
Square and rectangular fire pit screens are priced based on total perimeter.
Formula:
Total Perimeter = (Screen Length + Screen Width) × 2
Using the example above:
Screen size: 34" × 34"
(34 + 34) × 2 = 136" total perimeter
This screen falls within the 121"–144" Total Perimeter pricing category.
