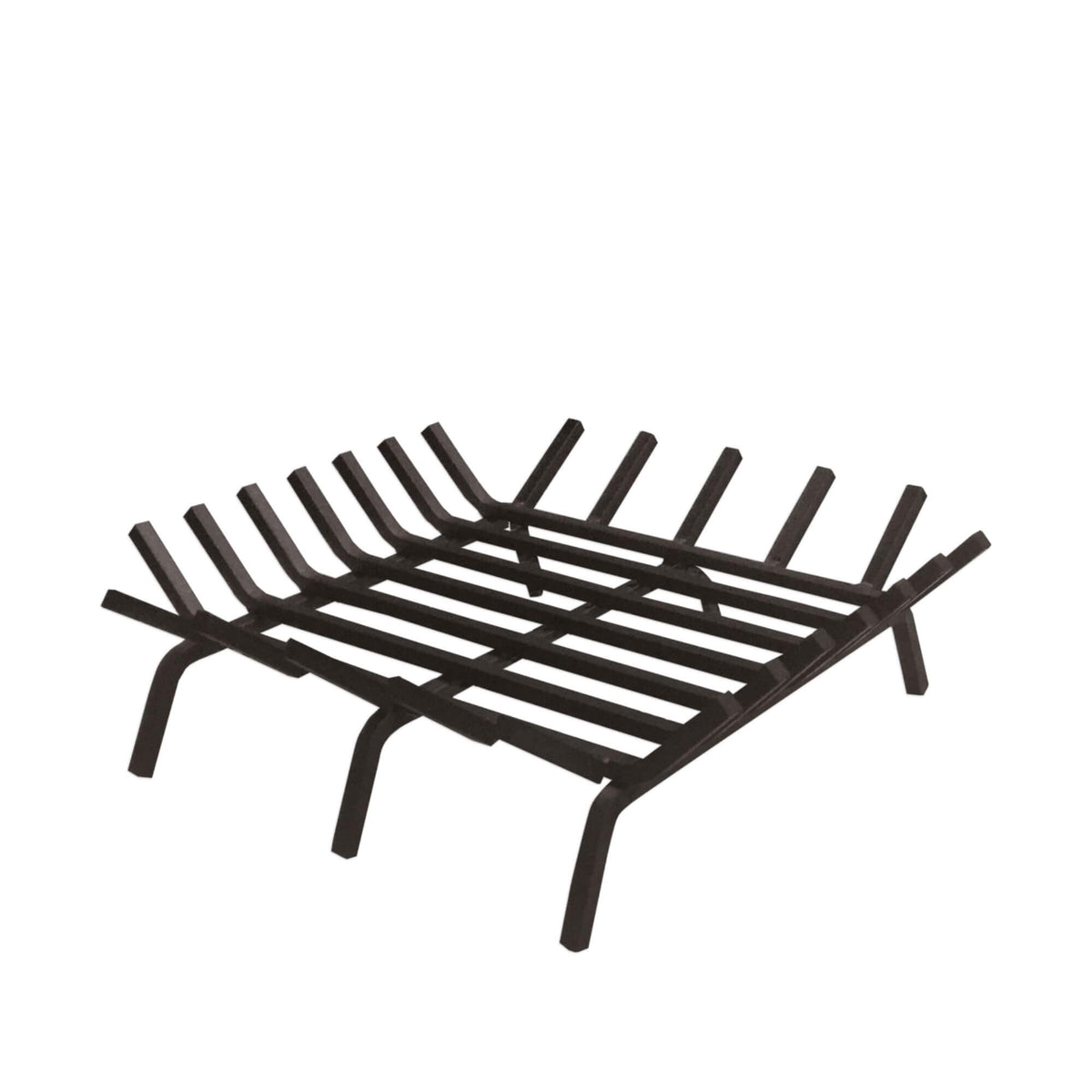

Master Flame square welded steel fire pit grate, black 5/8" steel bar

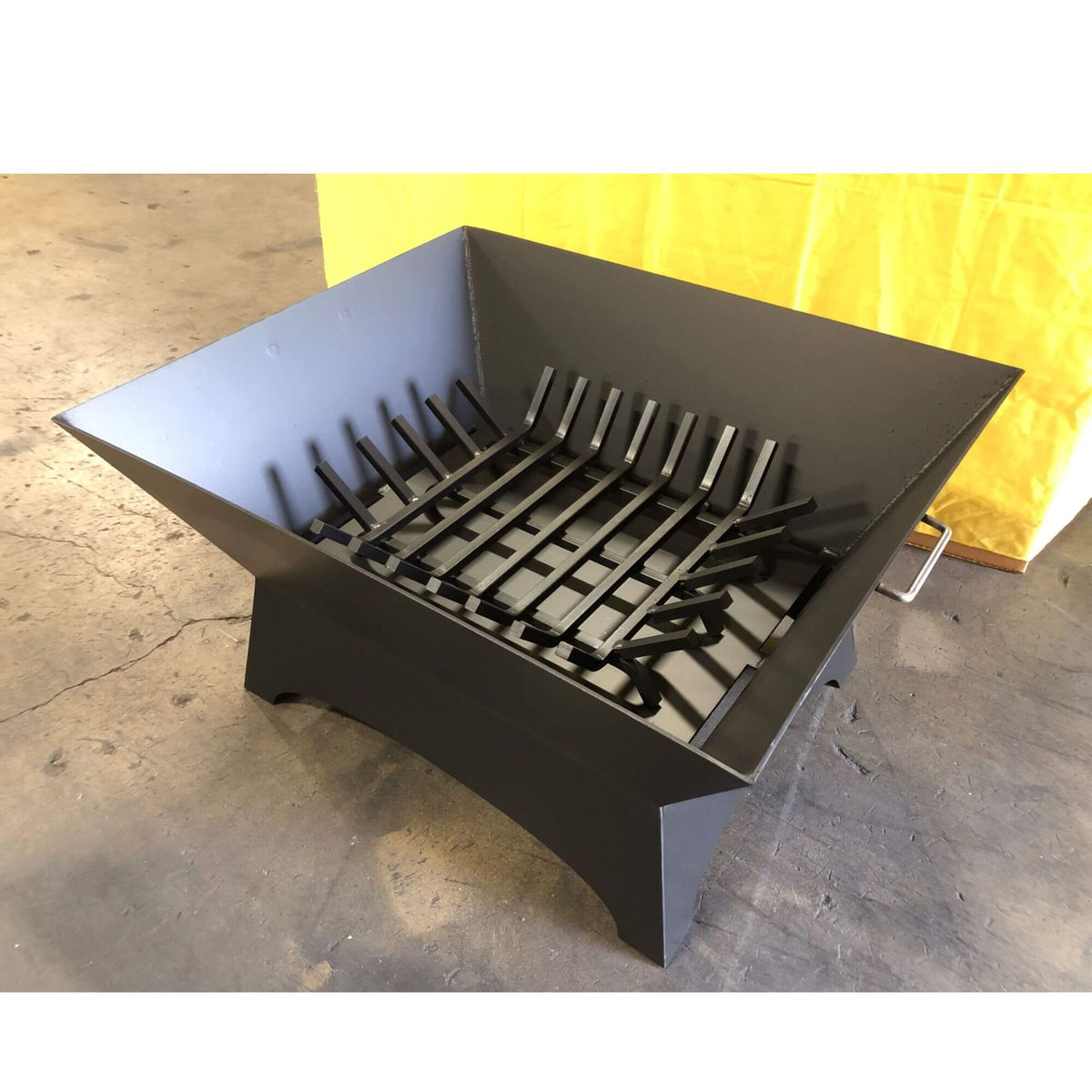

Master Flame square fire pit grate inside a square steel fire pit

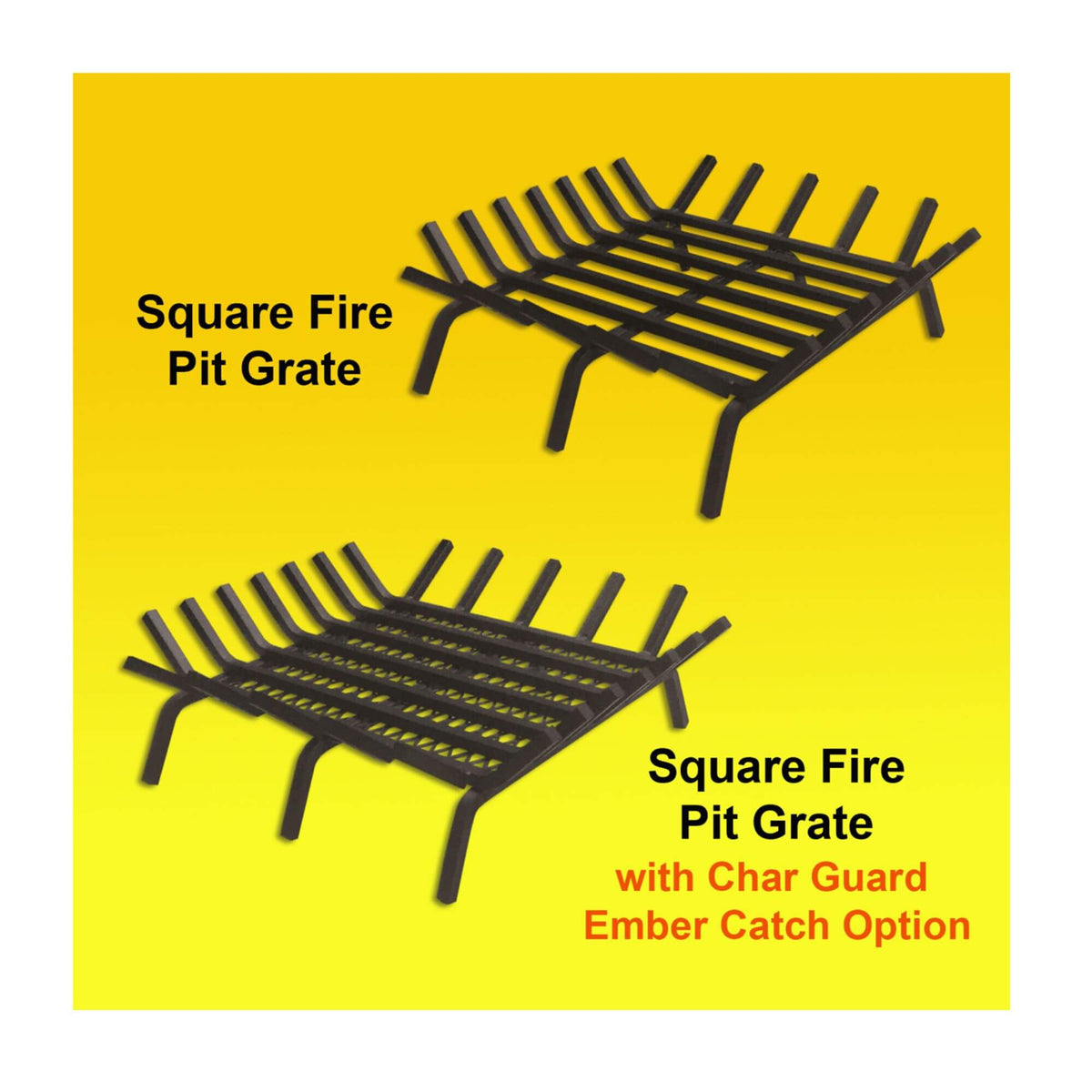

Master Flame square fire pit grate shown with and without the Char-Guard ember catch option

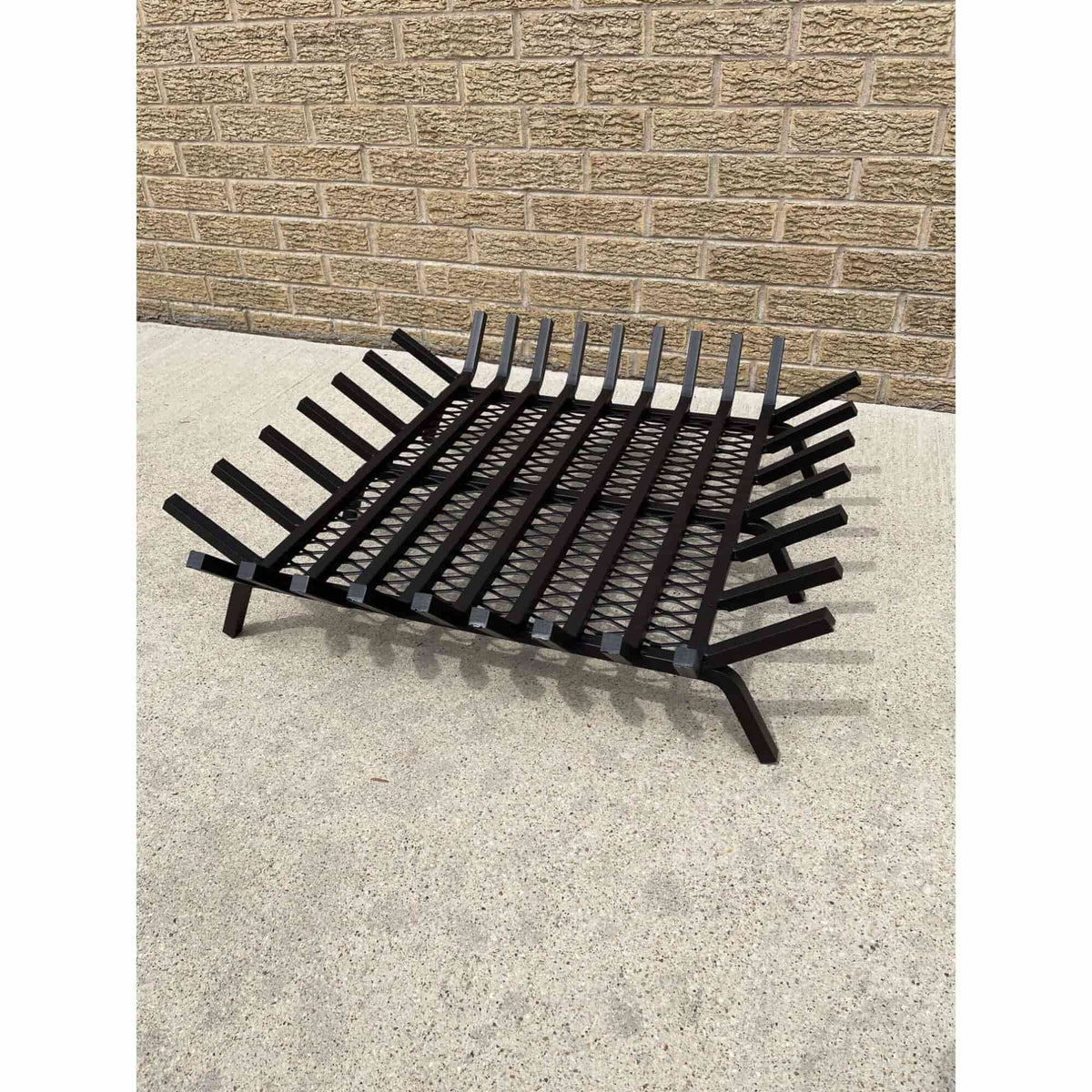

Master Flame square fire pit grate with Char-Guard ember catch, angle view

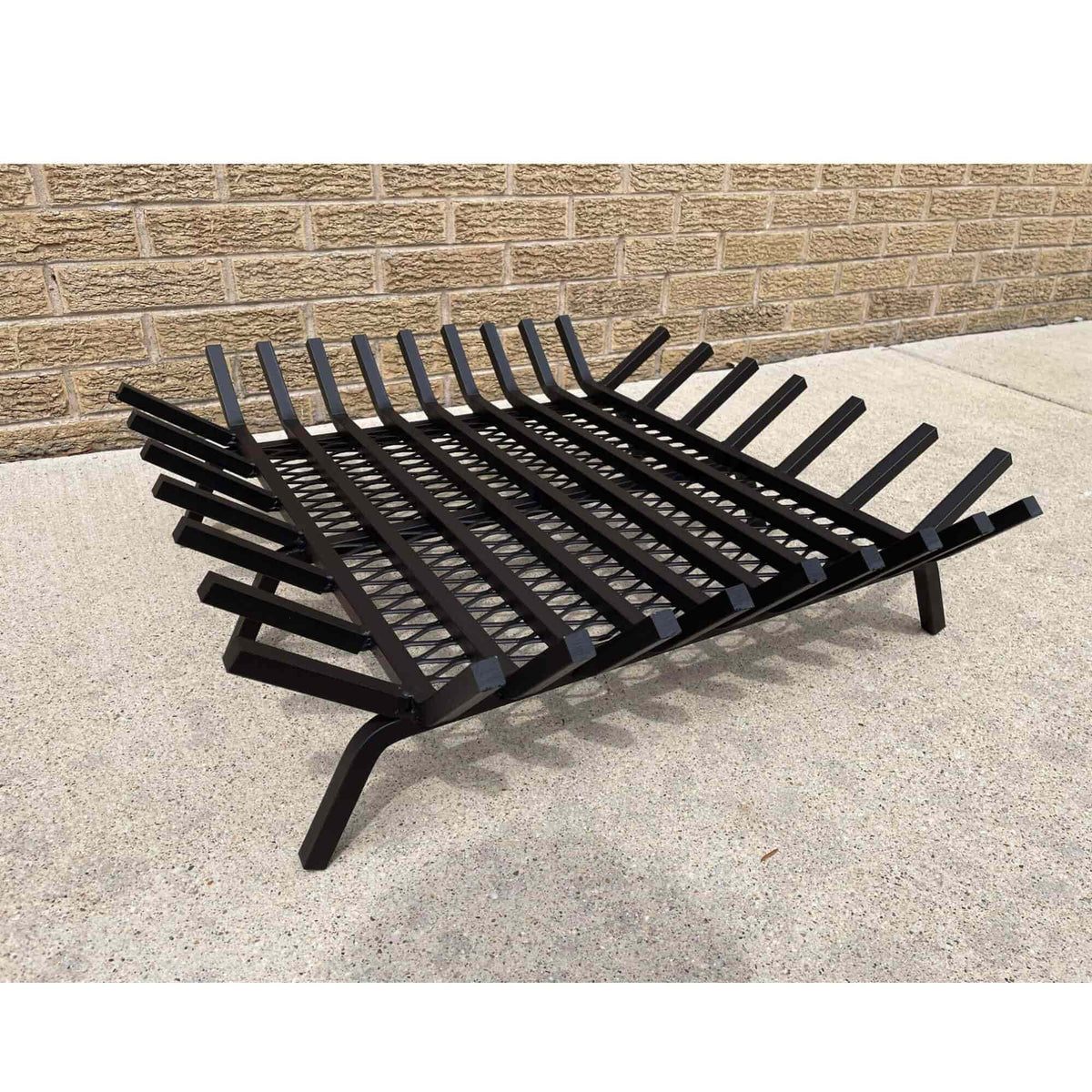

Master Flame square fire pit grate with Char-Guard ember catch, side view
Aspen Industries Inc

Aspen Industries Inc. Master Flame Square Welded Steel Fire Pit Grate

Sale price$342.00
Grate Size:
Material:
Char-Guard Ember Catch:

Free Shipping • Made to order • Ships in 20–25 Business Days

Have questions about this product?

Master Flame Square Fire Pit Grate lifts your firewood off the floor of the fire pit for better airflow and a cleaner, more efficient burn. Designed for square wood-burning fire pits, this welded steel bar grate is a great update for old cast iron grates.

Each grate is welded from heavy-duty 5/8" solid steel bar stock and is available in carbon steel or stainless steel. Standard 4" legs and 4" tines hold the logs in place, and the optional Char-Guard Ember Catch adds an expanded metal base for a more consistent burn and easier ash clean-up.

Master Flame fire pit grates are proudly made in the USA and are available in eight standard sizes from 24" x 24" to 48" x 48".

Product Features

Welded Steel Bar Construction

Built from heavy-duty 5/8" solid steel bar stock, welded into a strong square grate designed for wood-burning fire pits.

Carbon Steel or Stainless Steel

Available in:

  • 5/8" Carbon Steel
  • 5/8" Stainless Steel

Raised Design for a Better Burn

Standard 4" legs and 4" tines (8" from the floor to the top of the tines) lift the firewood for airflow and an efficient burn.

Optional Char-Guard Ember Catch

Heavy-duty expanded metal fitted and welded to the underside of the grate. Char-Guard improves burn consistency, simplifies ash clean-up and allows you to burn charcoal.

Upgrade for Old Cast Iron Grates

A durable welded steel replacement for worn or cracked cast iron fire grates.

Made in the USA

Manufactured in the United States using quality materials and craftsmanship.

Custom Options Available

Custom sizes, sizes over 48", and shorter or longer legs are available upon request. Contact us for a quote.


Specifications
Specification Details
Product Master Flame Square Fire Pit Grate
Shape Square
Application Wood-burning fire pits
Materials Available 5/8" Carbon Steel, 5/8" Stainless Steel
Bar Stock 5/8" solid steel bar, welded
Standard Sizes 24" x 24", 27" x 27", 30" x 30", 33" x 33", 36" x 36", 38" x 38", 42" x 42", 48" x 48"
Leg Height 4" standard
Tine Height 4" standard (8" from floor to top of tine)
Char-Guard Ember Catch Optional heavy-duty expanded metal welded to the underside
Standard Finish Black
Approximate Weight 43 lbs (24") · 54 lbs (27") · 64 lbs (30") · 70 lbs (33") · 77 lbs (36") · 82 lbs (38") · 96 lbs (42") · 110 lbs (48")
Custom Options Custom sizes and shorter or longer legs available on request
Manufacturing Made in the USA

Sizing Information

How to Select the Correct Size

Square grates should be at least 3 inches smaller than the inside of your fire pit all around (length minus 6 inches and width minus 6 inches). To determine the correct grate size:

  1. Measure the inside length and width of your square fire pit.
  2. Subtract 6 inches from each measurement.
  3. Select the closest available grate size that is not larger than the result.

Example:
A fire pit measuring 36 x 36 inches inside requires a 30" x 30" Square Fire Pit Grate.
