The Outdoor Plus San Juan Fire Pit - Powder Coat
Free Shipping • Made to order • Ships in 20–25 Business Days
Have questions about this product?

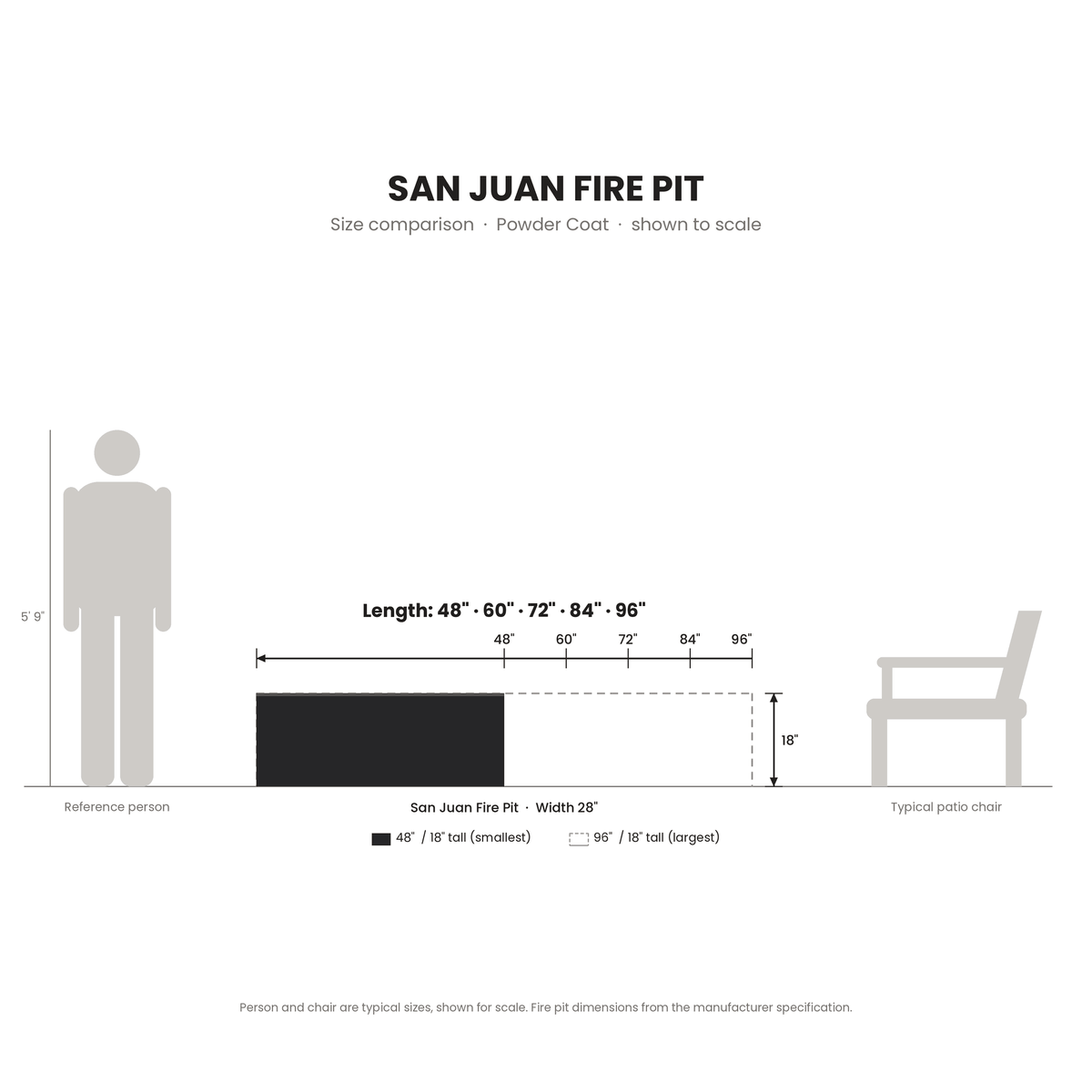

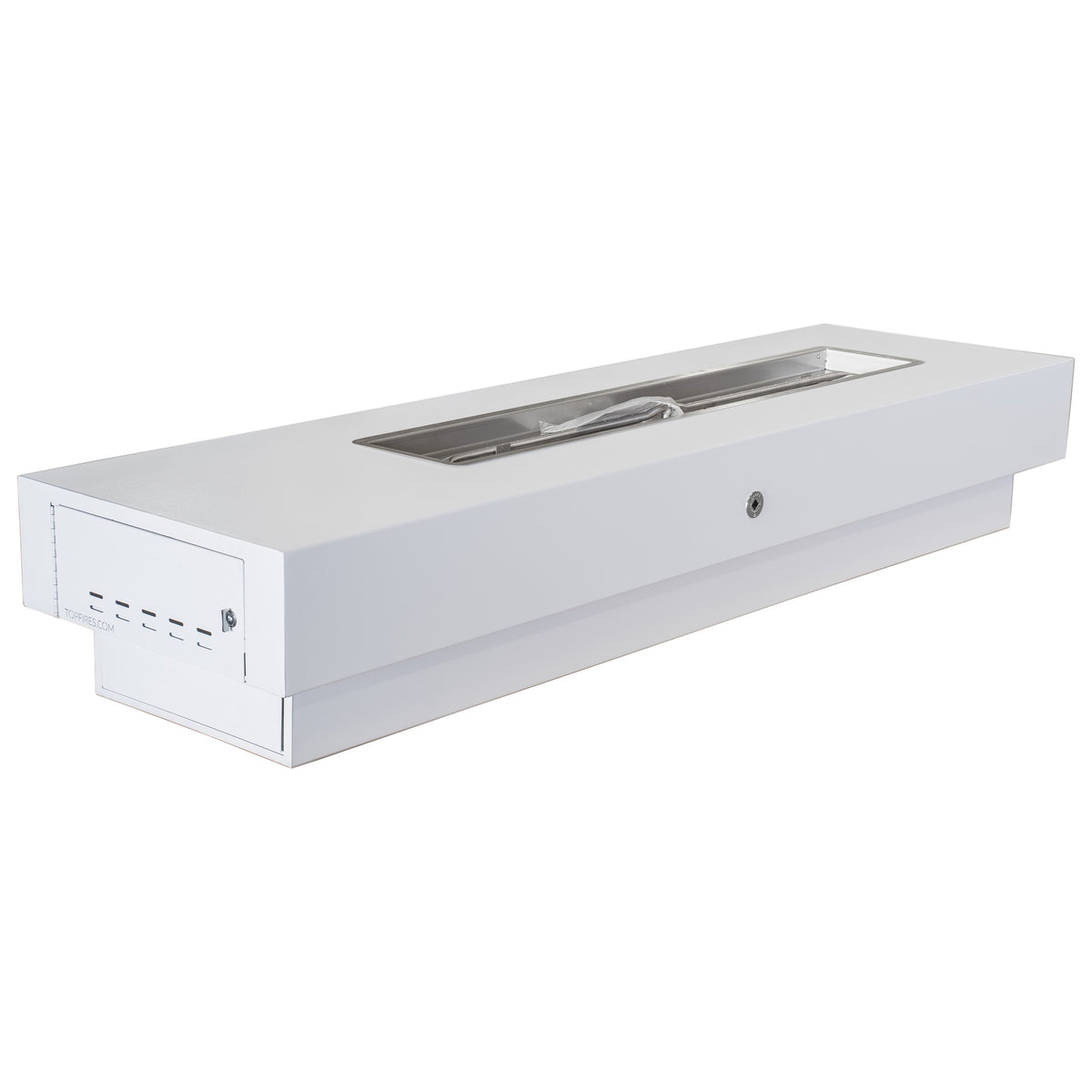

The San Juan Fire Pit is an 18"-tall linear fire pit in powder-coated steel, available in five lengths from 48" to 96" (28" wide). A side door with a slide-out tray holds a low-profile horizontal propane tank on propane models (a standard upright 20 lb tank will not fit). Offered in 23 powder coat finishes and six ignition options.
Powder coating is a durable, baked-on finish that resists chipping, fading and corrosion far better than conventional paint. It gives the steel body a smooth, uniform color that holds up to sun and weather with minimal maintenance.
See it in 3D and in your own yard
On a computer: click a 3D image in the photo gallery to rotate and zoom the fire pit.
On your phone: open a 3D image and tap View in your space to place the fire pit life-size in your backyard or on your patio. Keep it at 100% for true size; pinching it bigger or smaller changes the scale.

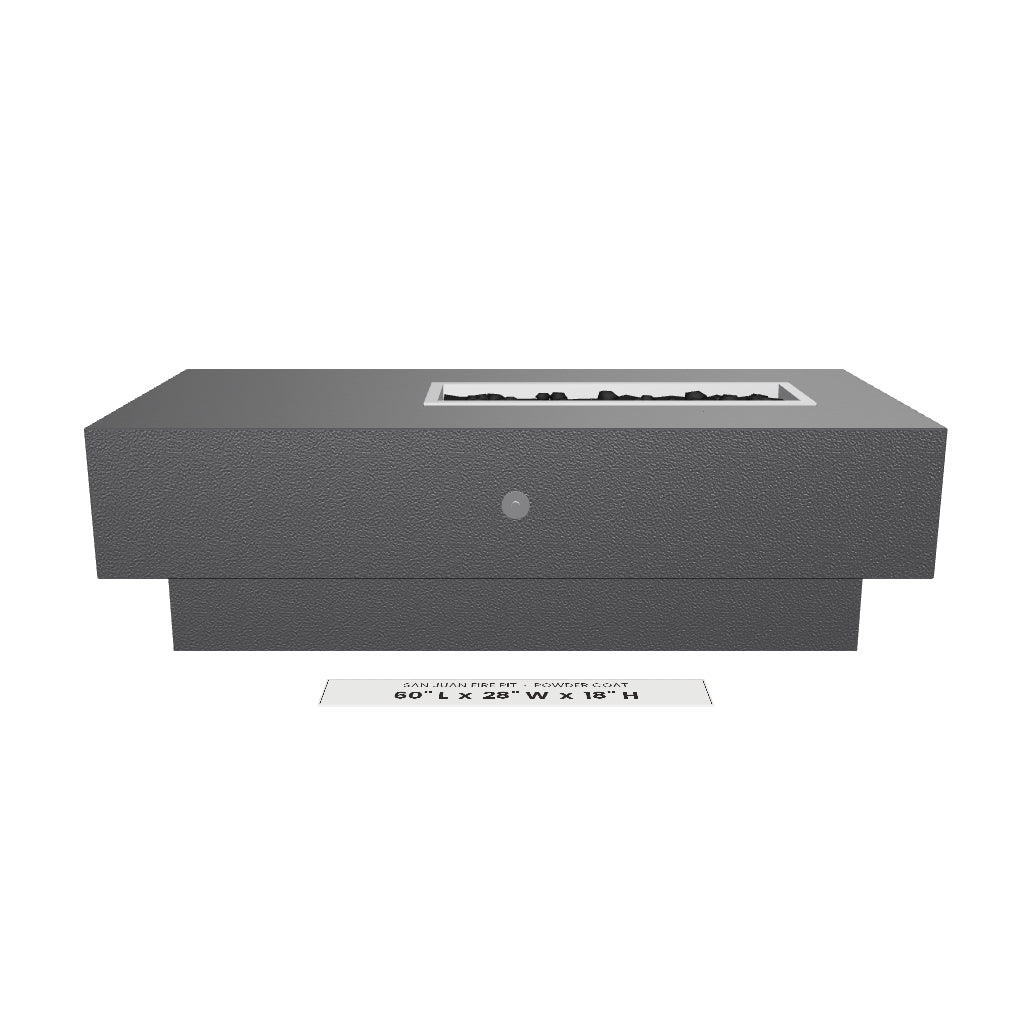

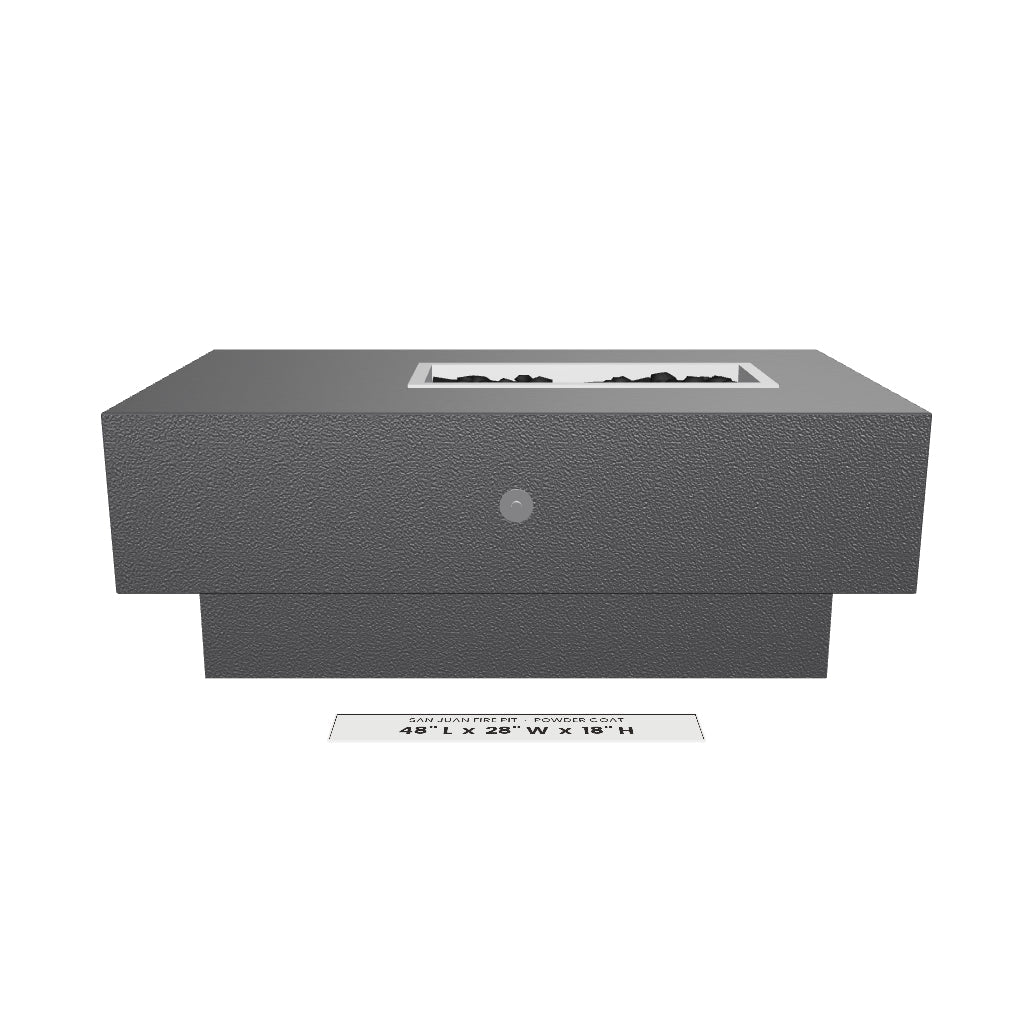

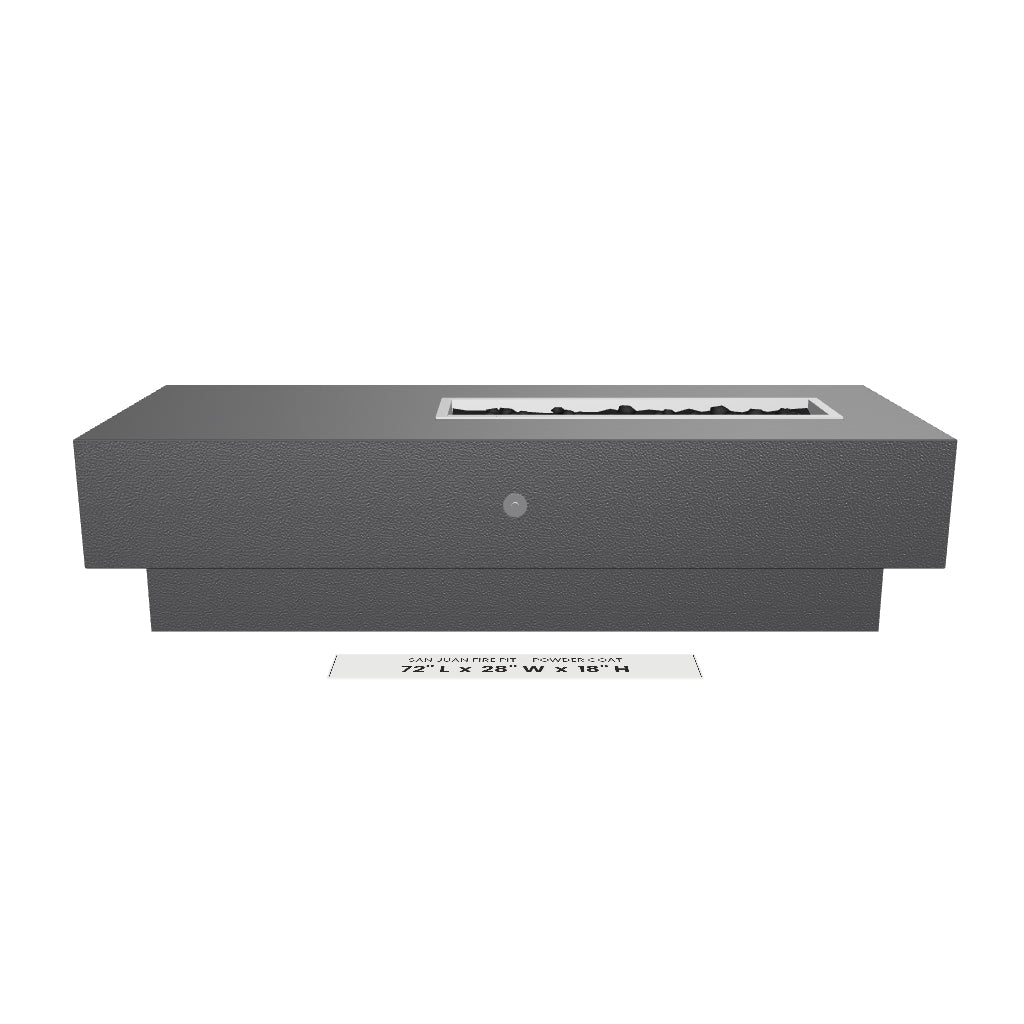

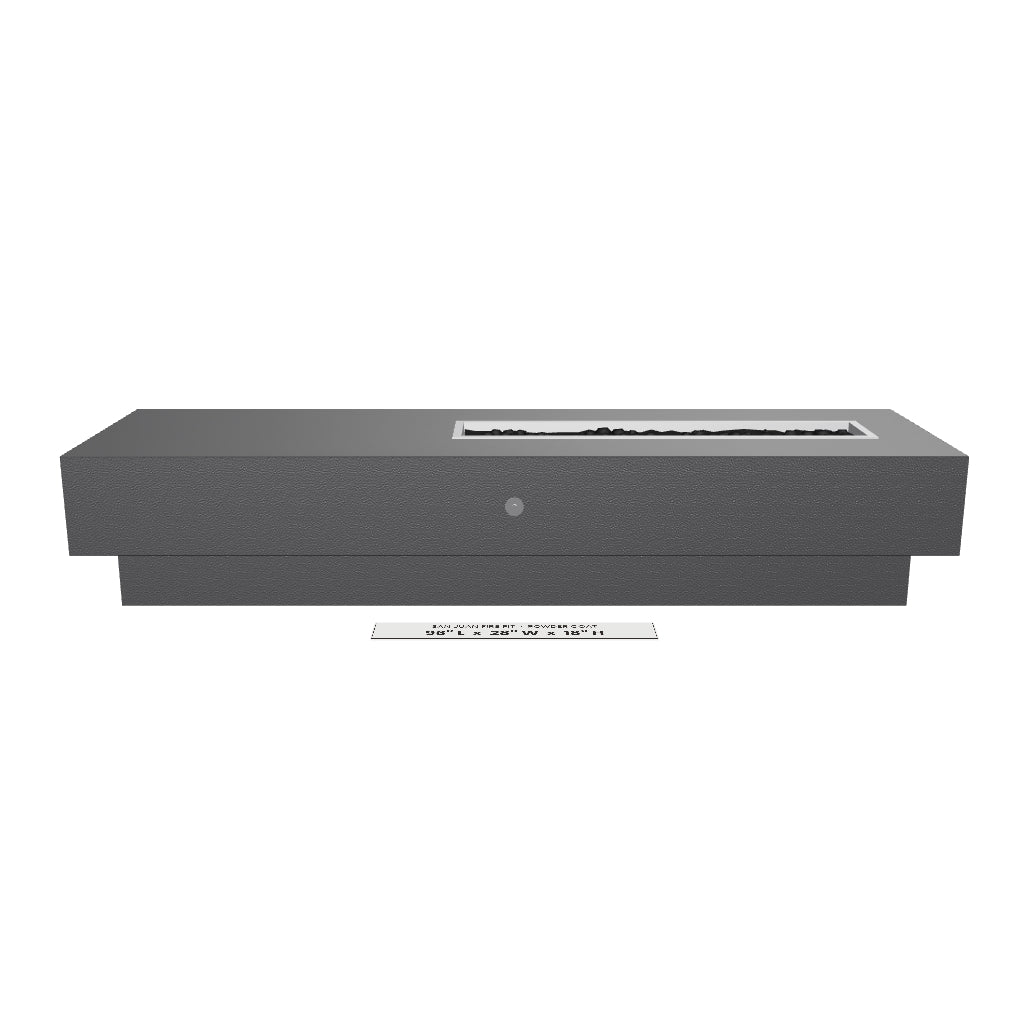

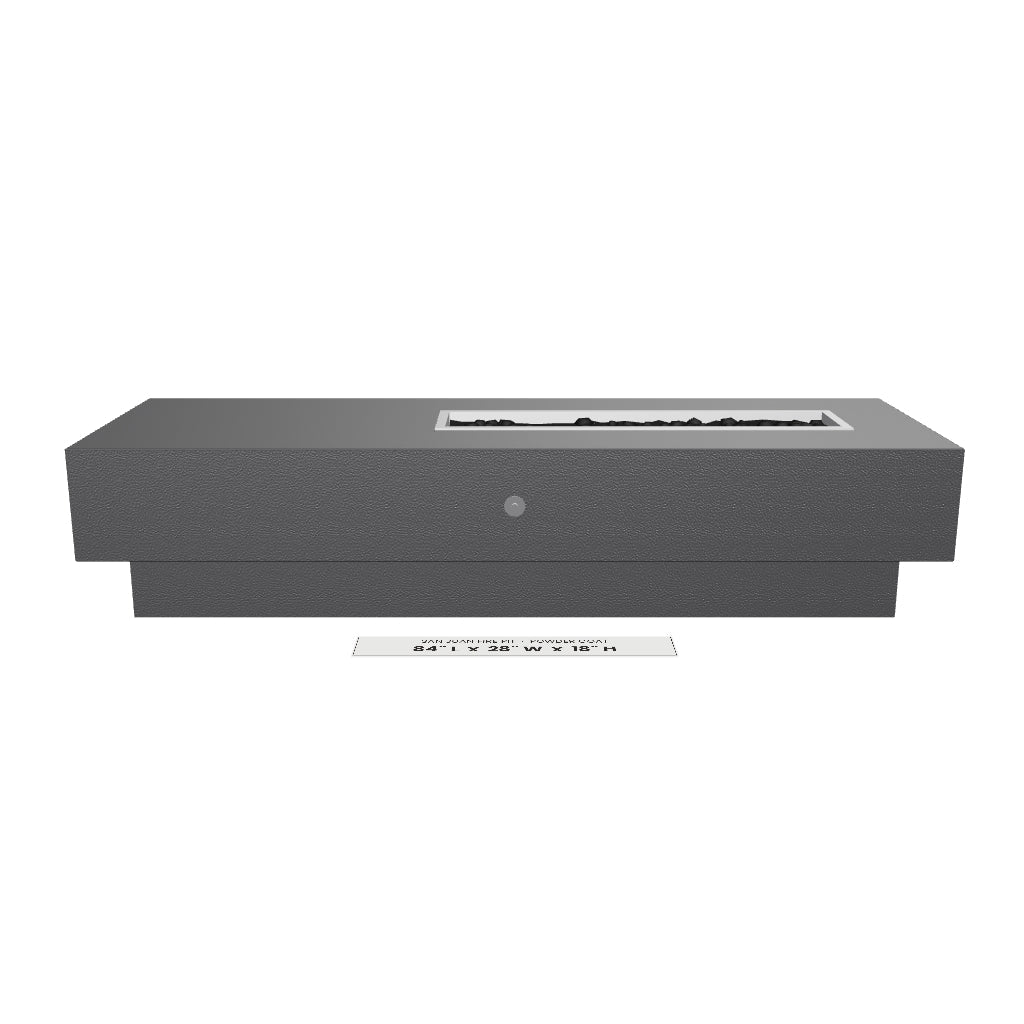

One 3D model is included for each size: 48" x 28" x 18" tall; 60" x 28" x 18" tall; 72" x 28" x 18" tall; 84" x 28" x 18" tall; 96" x 28" x 18" tall. Each model is labeled with its size.
The 3D models show size and shape. See the product photos for the exact finish and color.
Product Features
- Long Lasting – Constructed from steel with a durable, weather-resistant powder coat finish
- Handcrafted in the USA – Individually made by skilled artisans, ensuring every piece has its own unique character.
- Premium Burner Construction – Equipped with a 304 stainless steel burner for reliable performance and long-term durability.
- Complete Fire Feature Kit – Includes the fire pit, fire pan, burner, key valve, key, gas hoses, and lava rock. Exact ignition components vary according to the selected ignition system.
- Suggested Fire Glass – See specifications for the recommended fire glass quantity. Fire glass is available as an upgrade and is not included with the standard kit.
- Made to Order – Each TOP Fires product is built specifically for your order. All purchases are final.
Specifications
| Fuel Type | Natural Gas, Propane |
| Made In USA | Yes |
| Series | San Juan |
| Material | Powder Coated Steel |
| Shape | Rectangular |
| Stores LP Tank in Base | Yes – low-profile horizontal propane tank |
| Specification | 48" | 60" | 72" | 84" | 96" |
|---|---|---|---|---|---|
| Dimensions | (L) 48" x (H) 18" x (W) 28" | (L) 60" x (H) 18" x (W) 28" | (L) 72" x (H) 18" x (W) 28" | (L) 84" x (H) 18" x (W) 28" | (L) 96" x (H) 18" x (W) 28" |
| Burning Area | (L) 24" x (W) 10" | (L) 30" x (W) 10" | (L) 36" x (W) 10" | (L) 42" x (W) 10" | (L) 48" x (W) 10" |
| Weight | missing | missing | missing | missing | missing |
| BTU Output | 70,000 | 115,000 | 127,000 | 140,000 | 165,000 |
| Suggested Fireglass | 26 lbs | 32 lbs | 38 lbs | 44 lbs | 51 lbs |
Ignition Options
- Match Lit – Simple, manual lighting using a match or lighter.
- Match Lit w/ Flame Sense – Manually lit, with integrated Flame Sense technology for added safety.
- Spark Ignition – Battery-powered (AAA) spark ignition with a manual key valve.
- Flame Sense w/ Spark Ignition – Battery-powered (AAA) spark ignition with integrated Flame Sense technology and an integrated key valve.
- Plug & Play – Plugs directly into a standard 110V outlet; automatic flame-sensing shutoff and reignition. Power source must be located near the fire feature.
- 30DC Electronic Ignition – Weather-tested, automatically reignites if blown out; wireable to pool controllers, switches, or home automation. Requires a separate low-voltage transformer (not included), unless connecting to an existing pool or home automation system. A 30DC transformer is available for purchase in our store.
