Fire by Design

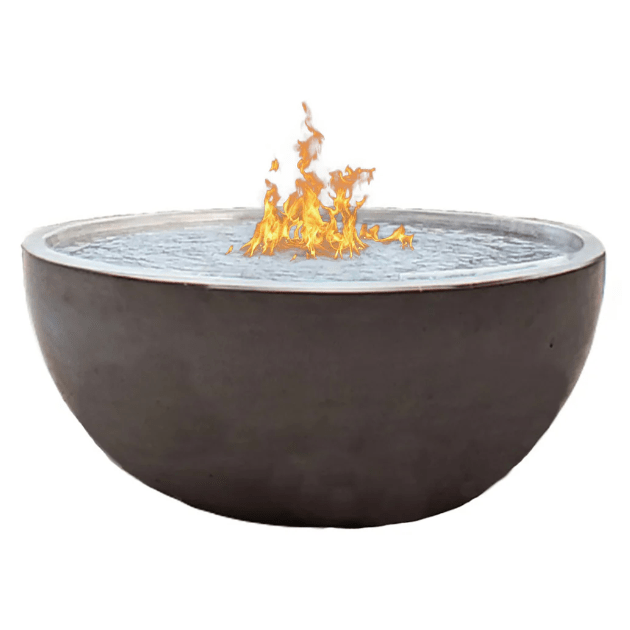

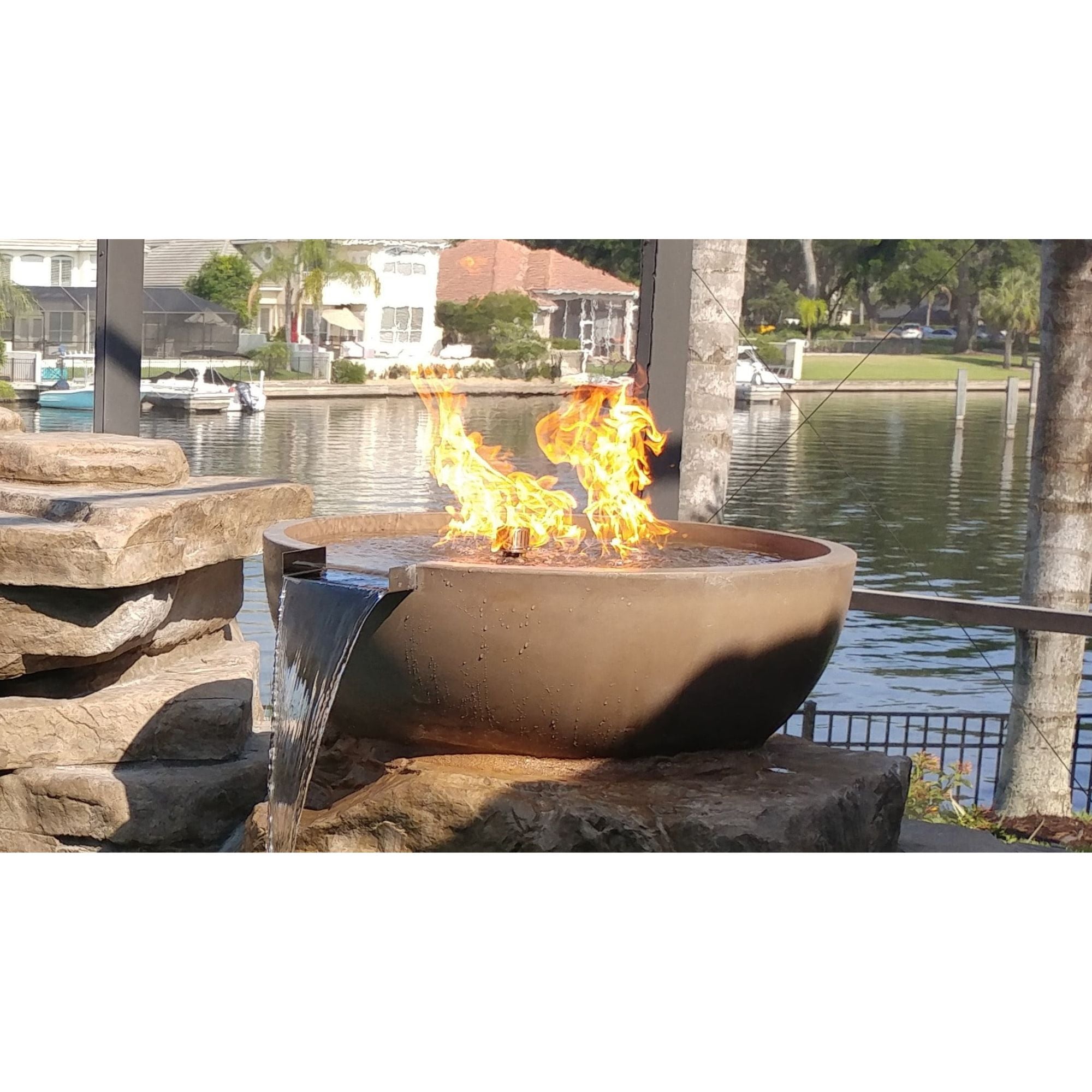

Fire by Design VSRSFWB32 Round Vessel 32-Inch GFRC Fire on Water Bowl

Sale price$4,850.11
Color:Charcoal
Ignition:

Free Shipping • Made to order • Ships in 30–35 Business Days

The Fire by Design VSRSFWB32 Round Vessel 32-Inch GFRC Fire on Water Bowl delivers a luxurious and reliable fire feature for your outdoor living space. Crafted with premium materials and customizable finish options, this fire and water bowl adds a modern yet timeless centerpiece to your patio or backyard. The stainless steel burner components provide exceptional durability in all weather conditions, while the glass fiber reinforced concrete (GFRC) offers superior strength and a refined aesthetic built to last for years.

Designed with flexibility in mind, this unit can be tailored to suit your specific installation requirements. With a wide selection of color options, your fire on water bowl can be perfectly matched to your outdoor décor or personal style. The optional All-Weather Electronic Ignition System (AWEIS) combines advanced engineering and depend able performance to ensure quick, effortless ignition. Available in both 24 VAC and 30 VDC configurations.

Product Features

  • Safety First: Electronic systems include a thermopile sensor that detects the presence of a flame and automatically shuts off the gas if the flame is ever extinguished, ensuring reliable and safe operation.

The 30VDC Option Includes:

  • 9" Diameter Water Burner Center Feed (1/2 PSI MINIMUM / 67K Btu's)
  • 30VDC Field Serviceable SUBEIS Standard Capacity with Fire on Water Pilot Burner Assembly
  • Includes 30VDC Power Supply
  • Water Scupper Spillway

The 24VAC Option Includes:

  • 9" Diameter Water Burner Center Feed (1/2 PSI MINIMUM / 67K Btu's)
  • SUBEIS Standard Capacity with Fire on Water Pilot Burner Assembly
  • Includes 24V Transformer
  • Water Scupper Spillway


Specifications
Fuel Type Natural Gas, Propane
Made In USA Yes
Series Vessel
Product Weight 300 lb
BTUs 136 000
Burner Material Marine Grade (316) Stainless Steel
Burner Size 9-Inches
Colors Different Variants
Ignition Electronic Ignition
Material Glass Fiber Reinforced Concrete (GFRC)
Product Depth 32.0 in.
Product Height 14.5 in.
Product Width 32.0 in.
Shape Round

Shipping Estimates

Usually Ships in 30-35 Business Days

Downloads

CCC Series Brochure

Installation and Operational Instructions

Fire by Design Component Catalog

Fire by Design Remote Control Options
Concrete fire pit with flames on a white background
Fire by Design VSRSFWB32 Round Vessel 32-Inch GFRC Fire on Water Bowl Sale price$4,850.11

Engineered Fire Features for Modern Outdoor Living

Fire By Design creates premium fire pits, burners, and custom fire features built for performance, reliability, and refined outdoor design. Handcrafted in the USA, their products combine advanced engineering with modern aesthetics to elevate any outdoor space.

Handcrafted American Quality

  • Designed and manufactured in the United States
  • Made-to-order craftsmanship for each project
  • Built with attention to detail and precision
  • Created for both residential and commercial spaces

Advanced Ignition Technology

  • All-weather electronic ignition systems
  • Reliable performance in wind, rain, and cold conditions
  • Consistent flame quality and easy operation
  • Engineered for safety and long-term use

Built for Outdoor Durability

  • Constructed with GFRC concrete and stainless steel
  • Designed to withstand harsh outdoor environments
  • Corrosion-resistant and weather-ready materials
  • Engineered for long-term performance

Customizable Fire Features

  • Available in multiple sizes and configurations
  • Natural gas and propane options
  • Variety of finishes and design styles
  • Ideal for custom-built outdoor spaces

Designed for Every Outdoor Setting

  • Fire pits and fire bowls for visual impact
  • Fire tables for entertaining and social spaces
  • Fire and water features for premium installations
  • Suitable for patios, courtyards, and hospitality environments

Made-to-Order Craftsmanship

  • Each piece is built specifically to your selection
  • Typical production time reflects attention to detail
  • Ensures a unique and tailored final product
  • Not mass-produced — built for quality

Why Choose Fire By Design

  • Industry-leading ignition technology
  • Custom-built, made-to-order designs
  • Durable materials for outdoor use
  • Trusted by designers and contractors
  • Built for performance and reliability

Create a Refined Outdoor Experience

Fire By Design products are built for those who want more than just a fire feature — delivering reliable performance, modern design, and a premium outdoor atmosphere that brings people together.
Description

The Fire by Design VSRSFWB32 Round Vessel 32-Inch GFRC Fire on Water Bowl delivers a luxurious and reliable fire feature for your outdoor living space. Crafted with premium materials and customizable finish options, this fire and water bowl adds a modern yet timeless centerpiece to your patio or backyard. The stainless steel burner components provide exceptional durability in all weather conditions, while the glass fiber reinforced concrete (GFRC) offers superior strength and a refined aesthetic built to last for years.

Designed with flexibility in mind, this unit can be tailored to suit your specific installation requirements. With a wide selection of color options, your fire on water bowl can be perfectly matched to your outdoor décor or personal style. The optional All-Weather Electronic Ignition System (AWEIS) combines advanced engineering and depend able performance to ensure quick, effortless ignition. Available in both 24 VAC and 30 VDC configurations.

Product Features

  • Safety First: Electronic systems include a thermopile sensor that detects the presence of a flame and automatically shuts off the gas if the flame is ever extinguished, ensuring reliable and safe operation.

The 30VDC Option Includes:

  • 9" Diameter Water Burner Center Feed (1/2 PSI MINIMUM / 67K Btu's)
  • 30VDC Field Serviceable SUBEIS Standard Capacity with Fire on Water Pilot Burner Assembly
  • Includes 30VDC Power Supply
  • Water Scupper Spillway

The 24VAC Option Includes:

  • 9" Diameter Water Burner Center Feed (1/2 PSI MINIMUM / 67K Btu's)
  • SUBEIS Standard Capacity with Fire on Water Pilot Burner Assembly
  • Includes 24V Transformer
  • Water Scupper Spillway

Specifications
Fuel Type Natural Gas, Propane
Made In USA Yes
Series Vessel
Product Weight 300 lb
BTUs 136 000
Burner Material Marine Grade (316) Stainless Steel
Burner Size 9-Inches
Colors Different Variants
Ignition Electronic Ignition
Material Glass Fiber Reinforced Concrete (GFRC)
Product Depth 32.0 in.
Product Height 14.5 in.
Product Width 32.0 in.
Shape Round
Shipping Estimates

Usually Ships in 30-35 Business Days

Downloads

CCC Series Brochure

Installation and Operational Instructions

Fire by Design Component Catalog

Fire by Design Remote Control Options

Delivery & Warranty

Delivery & Warranty – Fire by Design

Warranty Coverage

Fire by Design products are manufactured using high-quality materials and are covered against defects in materials and workmanship.

If a manufacturing defect is confirmed, the product will be repaired or replaced in accordance with the manufacturer’s warranty policy.

Warranty Periods

  • Fire Bowls – 2 Years
  • Fire Rings –
    • 304 Stainless Steel: 3 Years
    • 316 Stainless Steel: Lifetime
  • Burner Pans –
    • 304 Stainless Steel: 5 Years
    • Aluminum: Lifetime
  • Ignition Systems & Modules – 1–3 Years (depending on residential or commercial use)

This warranty does not cover damage caused by misuse, improper installation, accidents, or unauthorized modifications.

Production & Order Processing

CCC Series products are made-to-order using high-quality materials and standard designs.

  • Lead time: 30–35 business days (production time)

Orders are processed shortly after purchase to ensure timely production. Orders ship after the production process is completed.

Shipping & Delivery

Orders ship from the United States.

  • Transit time: 5–10 business days
  • Delivery method: Curbside delivery

Estimated total delivery time:

  • 35–45 business days (production + shipping)

Curbside delivery means the carrier will deliver your order to the nearest accessible location outside your property (such as your driveway or curb).

White glove delivery is not included but may be arranged separately if needed.

Order Changes & Cancellations

You may request to cancel or modify your order before production begins.

Once production has started, changes or cancellations is no longer possible. Please contact us as soon as possible and we will do our best to assist you.

Returns & Customer Protection

We offer a 30-day return window from the date of delivery for eligible items.

To be eligible for a return:

  • Items must be unused, undamaged, and in original packaging
  • Proof of purchase is required

CCC Series products are made-to-order and are not eligible for return once production has begun. Orders may only be canceled before production starts.

However, your satisfaction is important to us:

If your item arrives damaged, defective, or incorrect, we will resolve the issue with a replacement, repair, or refund at no cost to you.
Please report any issues within 48 hours of delivery.

Refunds & Exchanges

  • Damaged or Defective Items: Replacement or full refund provided
  • Incorrect Items: Return shipping is arranged and the correct item is sent
  • Lost Shipments: Replaced or refunded if confirmed by the carrier

Refunds are issued after inspection and processed to the original payment method (typically within 14 business days).

Freight Damage or Incorrect Items

If your order arrives damaged or incorrect:

If damage is visible at delivery, we recommend refusing the shipment and contacting us immediately.

Policies

Safety

Safety Guidelines

Built for safe outdoor enjoyment.

Professional Installation Recommended
Professional installation by a licensed contractor is strongly recommended. Installation should comply with all local building codes and gas regulations.

Outdoor Use Only
This fire feature is designed for outdoor use only. Do not operate indoors or in enclosed spaces.

Safe Placement
Place the unit on a stable, level, non-combustible surface and maintain adequate clearance from structures and combustible materials.

Supervision Required
Never leave a fire feature unattended while in operation. Keep children and pets at a safe distance.

Fuel & Connection Safety
Ensure gas connections are properly installed and inspected before use. Always follow the manufacturer’s instructions when connecting propane tanks or natural gas lines.

Weather Conditions
Do not operate during strong winds or severe weather. Allow the unit to cool completely before covering.

Installation Responsibility Disclaimer

The purchaser is responsible for ensuring that installation and use comply with all applicable local building codes and gas regulations.

The retailer is not responsible for damages, injuries, or code violations resulting from improper installation, modification, or misuse of the product.

WARNING: Combustion byproducts produced when using this product include carbon monoxide and other chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

System Configuration

Choose Your System Configuration

Your Fire By Design fire feature is available in two low-voltage electronic control configurations. Both options are part of a complete, factory-designed system and are built for safe, reliable outdoor performance.

The only difference is the type of ignition/control system used in your build.

OPTION 1: 24VAC (Standard Configuration)

Choose this option if you want a proven, traditional low-voltage control system.

What you get:

  • 24V transformer-powered ignition system
  • Reliable standard configuration used in many installations
  • Simple and widely supported control setup
  • Complete Fire By Design system configured for 24VAC operation

Best for:

  • Standard residential installations
  • Straightforward fire feature setups
  • Customers who want a traditional, proven system

✔ This is the most common configuration choice.

OPTION 2: 30VDC (Advanced Configuration)

Choose this option if you want a modern, upgraded control architecture built for enhanced system design.

What you get:

  • 30VDC power supply system
  • Advanced ignition/control configuration
  • Field-serviceable system components
  • Complete Fire By Design system configured for 30VDC operation

Best for:

  • Premium or more advanced installations
  • Projects requiring modern control architecture
  • Customers who want a more service-friendly system design

✔ This is the upgraded configuration option.

WHICH ONE SHOULD YOU CHOOSE?

Both options are designed to work as complete Fire By Design systems.

Most customers choose:

24VAC (Standard Configuration)

Choose 30VDC if:

Your project requires a modern DC-based control system or your installer specifies it.

IMPORTANT NOTE

Both options are fully configured systems, you are not upgrading parts, you are selecting how your complete fire feature is built.

If you are unsure which option to choose, contact us before ordering and we will confirm the correct configuration for your project.
