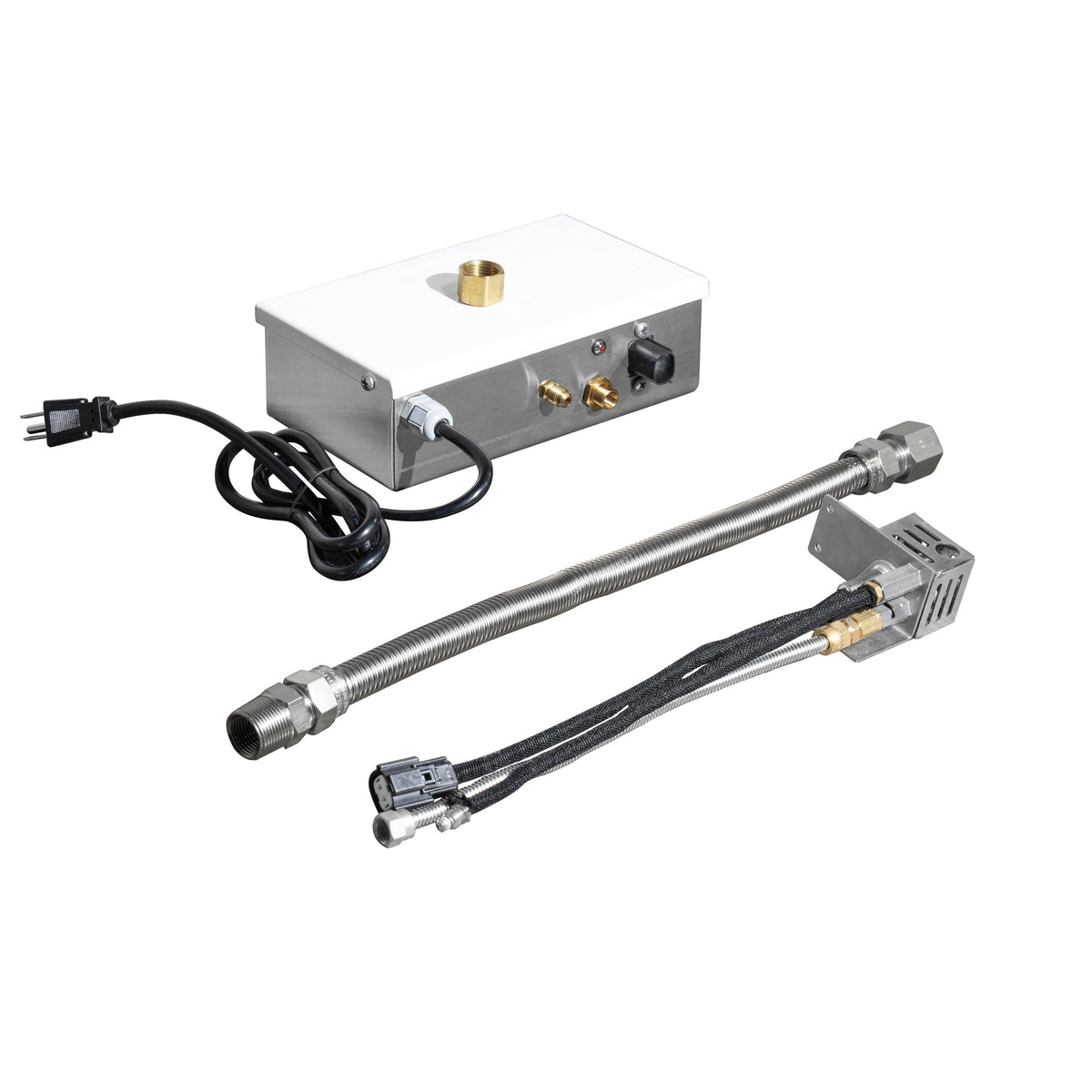

The Outdoor Plus 30DC Plug & Play Electronic Ignition System
Free Shipping • Ships in 10–14 Business Days
Have questions about this product?
The Outdoor Plus 30DC Plug & Play Electronic Ignition System is the simplest way to add hands-free electronic ignition to a gas fire feature. The electronic valve box comes with a standard 3-prong plug, so it can be connected directly to a 110V outlet, or hard-wired by an electrician to a light switch, timer, pool controller or smart home hub.
The system pairs the electronic gas valve with a hot surface pilot igniter and thermocouple flame sensing for reliable, automatic lighting with safety shutoff. It is available in three capacities to match the BTU output of the burner it controls, and works with natural gas or liquid propane.
Choosing a capacity
Mini Capacity – up to 190,000 BTU/hr
Standard Capacity – up to 290,000 BTU/hr
High Capacity – up to 510,000 BTU/hr
Product Features
- Plug & Play Installation – Valve box with a 3-prong plug for a standard 110V outlet; no separate transformer required.
- Flexible Control – Can be hard-wired by an electrician to a light switch, dial timer, pool controller or smart home hub.
- Automatic Safety Shutoff – Thermocouple flame sensing closes the gas valve if the flame is lost, and the valve shuts down automatically above 175°F.
- Built for the Outdoors – Potted control module, encapsulated coils and waterproof connectors resist moisture, with a -20° to 175°F operating range.
- LED Diagnostics – Built-in LED diagnostics simplify field service and troubleshooting.
- Certified Components – System certified to ANSI Z21.97-2017 / CSA 2.41-2017.
Specifications
| Specification | Details |
|---|---|
| Product | The Outdoor Plus 30DC Plug & Play Electronic Ignition System |
| Model Numbers | Mini Capacity: TOP-500EIS-100-30DC-110V Standard Capacity: TOP-500EIS-200-30DC-110V High Capacity: TOP-500EIS-300-30DC-110V |
| Maximum Gas Output | Mini: up to 190,000 BTU/hr Standard: up to 290,000 BTU/hr High: up to 510,000 BTU/hr |
| Fuel Type | Natural Gas or Liquid Propane (portable or hard-lined LP) |
| Power Supply | 110V outlet via 3-prong plug; minimum 2.0–2.2 amps |
| Included Components | Electronic ignition valve with 3-prong plug and pilot igniter assembly |
| Gas Inlet / Outlet | Mini and Standard: 1/2" FIP High: 3/4" FIP |
| Pilot Igniter | Mini and Standard: TOP-500PIR High: TOP-500PIRHC |
| Flame Sensing | Thermocouple flame sense |
| Operating Temperature | -20° to 175°F, with automatic safety shutoff above 175°F |
| Control Options | Plug-in operation, or hard-wired to a light switch, dial timer, pool controller or smart home automation |
| Gas Supply Pressure | Natural Gas: 3.5" W.C. min / 7" W.C. nominal / 14" W.C. max Liquid Propane: 8" W.C. min / 11" W.C. nominal / 14" W.C. max |
| Installation Notes | A heat shield or burner pan is required between the valve box and the burner; enclosures require cross ventilation of 1 sq. in. per 25,000 BTU on each side; connect to a GFCI-protected outlet |
| Certifications | ANSI Z21.97-2017 / CSA 2.41-2017; manual key valve CSA certified to ANSI Z21.15 / CSA 9.1; pilot CSA certified to ANSI Z21.20 |
| Warranty | Electronics, gas valves and pilot assembly: Residential 1 year, Commercial 6 months |
Gas installation must be performed by a qualified, locally licensed gas professional, and electrical work by a licensed electrician.
