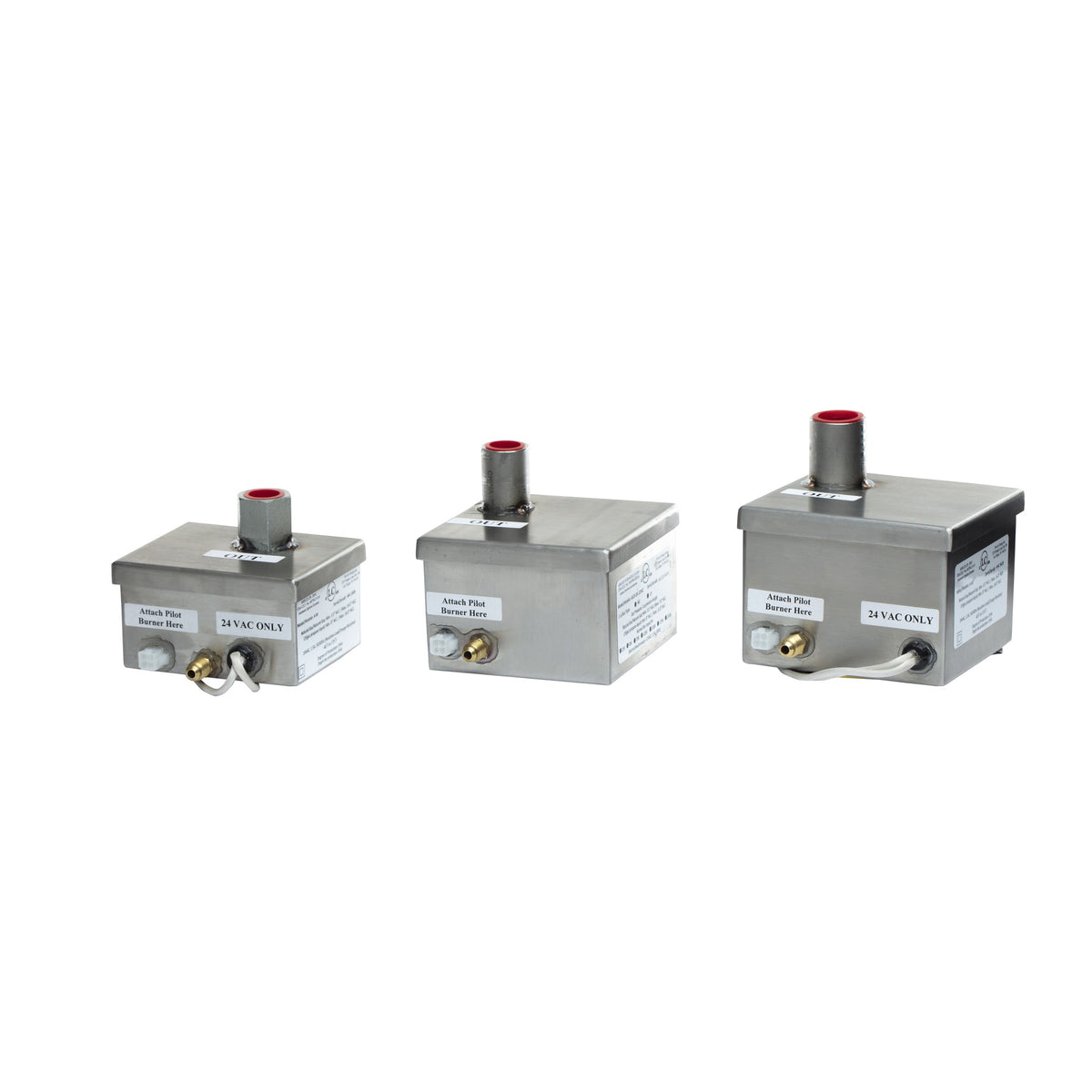

Fire by Design AWEIS electronic ignition system
Fire by Design

Fire by Design All Weather Electronic Ignition System (AWEIS)

SKU: SCGNG-FS
Sale price$2,282.59
Capacity:
Power:
Fuel Type:

Free Shipping • Ships in 2–3 Business Days

Have questions about this product?

The Fire by Design All Weather Electronic Ignition System (AWEIS) is a field serviceable electronic ignition for custom gas fire pits, fire tables and fire features. A hot surface igniter lights the pilot burner and the pilot then lights the main burner, so the fire feature can be turned on and off with a switch, timer, pool controller or home automation system.

Available in Standard Capacity and High Capacity, for 24VAC, 30VDC or 120VAC power, and for natural gas or liquid propane.

Product Features
  • Electronic Ignition – A hot surface igniter (glow plug) lights the pilot, which then lights the main burner within seconds of power being applied.
  • Field Serviceable – Field serviceable pilot burner and ignition control module, with replacement parts available.
  • Two Capacities – Standard Capacity up to 290K BTU with 1/2" inlet and outlet, or High Capacity up to 780K BTU with 3/4" inlet and outlet.
  • Three Power Options – 24VAC with transformer included, 30VDC (power supply sold separately) or 120VAC with adaptor included.
  • Automation Ready – Can be wired to automated pool controllers such as Aqualink or Pentair IntelliTouch.
Specifications
Specification Details
Product Fire by Design All Weather Electronic Ignition System (AWEIS)
Model Numbers Standard Capacity: SCGNG-FS, SCGLP-FS (24VAC); SCGNG30-FS, SCGLP30-FS (30VDC); SCGNG120-FS, SCGLP120-FS (120VAC)
High Capacity: HCGNG-FS, HCGLP-FS (24VAC); HCGNG30-FS, HCGLP30-FS (30VDC); HCGNG120-FS, HCGLP120-FS (120VAC)
Capacity Standard Capacity: up to 290,000 BTU
High Capacity: up to 780,000 BTU
Inlet / Outlet Standard Capacity: 1/2" FIP inlet and outlet
High Capacity: 3/4" FIP inlet and outlet
Includes Ignition control module, 18" field serviceable pilot burner assembly, heat deflector shield and install instructions
24VAC models: 24 volt AC transformer
120VAC models: 120 VAC adaptor
30VDC models: power supply not included, sold separately (30VDC Power Supply)
Pilot Burner 18" standard; 12", 24" and 30" lengths and extensions available on request
Fuel Type Natural Gas or Liquid Propane
Gas Pressure Natural gas: 3.5" W.C. minimum, 7.0" W.C. nominal, 14.0" W.C. maximum
Propane: 8.0" W.C. minimum, 11.0" W.C. nominal, 14.0" W.C. maximum
Wiring 12-gauge wire recommended for hardwired installations; up to 3 units can be daisy chained on 24VAC or 30VDC (the 120VAC adaptor powers one unit)
Warranty Electronic ignition: 3 years residential, 1 year commercial (Fire by Design limited warranty)

Installation must be performed by a qualified, locally licensed gas professional.

Downloads

AWEIS Installation Instructions
Fire by Design AWEIS electronic ignition system
Fire by Design All Weather Electronic Ignition System (AWEIS) Sale price$2,282.59

Engineered Fire Features for Modern Outdoor Living

Fire By Design creates premium fire pits, burners, and custom fire features built for performance, reliability, and refined outdoor design. Handcrafted in the USA, their products combine advanced engineering with modern aesthetics to elevate any outdoor space.

Handcrafted American Quality

  • Designed and manufactured in the United States
  • Made-to-order craftsmanship for each project
  • Built with attention to detail and precision
  • Created for both residential and commercial spaces

Advanced Ignition Technology

  • All-weather electronic ignition systems
  • Reliable performance in wind, rain, and cold conditions
  • Consistent flame quality and easy operation
  • Engineered for safety and long-term use

Built for Outdoor Durability

  • Constructed with GFRC concrete and stainless steel
  • Designed to withstand harsh outdoor environments
  • Corrosion-resistant and weather-ready materials
  • Engineered for long-term performance

Customizable Fire Features

  • Available in multiple sizes and configurations
  • Natural gas and propane options
  • Variety of finishes and design styles
  • Ideal for custom-built outdoor spaces

Designed for Every Outdoor Setting

  • Fire pits and fire bowls for visual impact
  • Fire tables for entertaining and social spaces
  • Fire and water features for premium installations
  • Suitable for patios, courtyards, and hospitality environments

Made-to-Order Craftsmanship

  • Each piece is built specifically to your selection
  • Typical production time reflects attention to detail
  • Ensures a unique and tailored final product
  • Not mass-produced — built for quality

Why Choose Fire By Design

  • Industry-leading ignition technology
  • Custom-built, made-to-order designs
  • Durable materials for outdoor use
  • Trusted by designers and contractors
  • Built for performance and reliability

Create a Refined Outdoor Experience

Fire By Design products are built for those who want more than just a fire feature — delivering reliable performance, modern design, and a premium outdoor atmosphere that brings people together.
Description

The Fire by Design All Weather Electronic Ignition System (AWEIS) is a field serviceable electronic ignition for custom gas fire pits, fire tables and fire features. A hot surface igniter lights the pilot burner and the pilot then lights the main burner, so the fire feature can be turned on and off with a switch, timer, pool controller or home automation system.

Available in Standard Capacity and High Capacity, for 24VAC, 30VDC or 120VAC power, and for natural gas or liquid propane.

Product Features
  • Electronic Ignition – A hot surface igniter (glow plug) lights the pilot, which then lights the main burner within seconds of power being applied.
  • Field Serviceable – Field serviceable pilot burner and ignition control module, with replacement parts available.
  • Two Capacities – Standard Capacity up to 290K BTU with 1/2" inlet and outlet, or High Capacity up to 780K BTU with 3/4" inlet and outlet.
  • Three Power Options – 24VAC with transformer included, 30VDC (power supply sold separately) or 120VAC with adaptor included.
  • Automation Ready – Can be wired to automated pool controllers such as Aqualink or Pentair IntelliTouch.
Specifications
Specification Details
Product Fire by Design All Weather Electronic Ignition System (AWEIS)
Model Numbers Standard Capacity: SCGNG-FS, SCGLP-FS (24VAC); SCGNG30-FS, SCGLP30-FS (30VDC); SCGNG120-FS, SCGLP120-FS (120VAC)
High Capacity: HCGNG-FS, HCGLP-FS (24VAC); HCGNG30-FS, HCGLP30-FS (30VDC); HCGNG120-FS, HCGLP120-FS (120VAC)
Capacity Standard Capacity: up to 290,000 BTU
High Capacity: up to 780,000 BTU
Inlet / Outlet Standard Capacity: 1/2" FIP inlet and outlet
High Capacity: 3/4" FIP inlet and outlet
Includes Ignition control module, 18" field serviceable pilot burner assembly, heat deflector shield and install instructions
24VAC models: 24 volt AC transformer
120VAC models: 120 VAC adaptor
30VDC models: power supply not included, sold separately (30VDC Power Supply)
Pilot Burner 18" standard; 12", 24" and 30" lengths and extensions available on request
Fuel Type Natural Gas or Liquid Propane
Gas Pressure Natural gas: 3.5" W.C. minimum, 7.0" W.C. nominal, 14.0" W.C. maximum
Propane: 8.0" W.C. minimum, 11.0" W.C. nominal, 14.0" W.C. maximum
Wiring 12-gauge wire recommended for hardwired installations; up to 3 units can be daisy chained on 24VAC or 30VDC (the 120VAC adaptor powers one unit)
Warranty Electronic ignition: 3 years residential, 1 year commercial (Fire by Design limited warranty)

Installation must be performed by a qualified, locally licensed gas professional.

Downloads

AWEIS Installation Instructions
