Round Flat Burner Pan & Fire Ring Kit

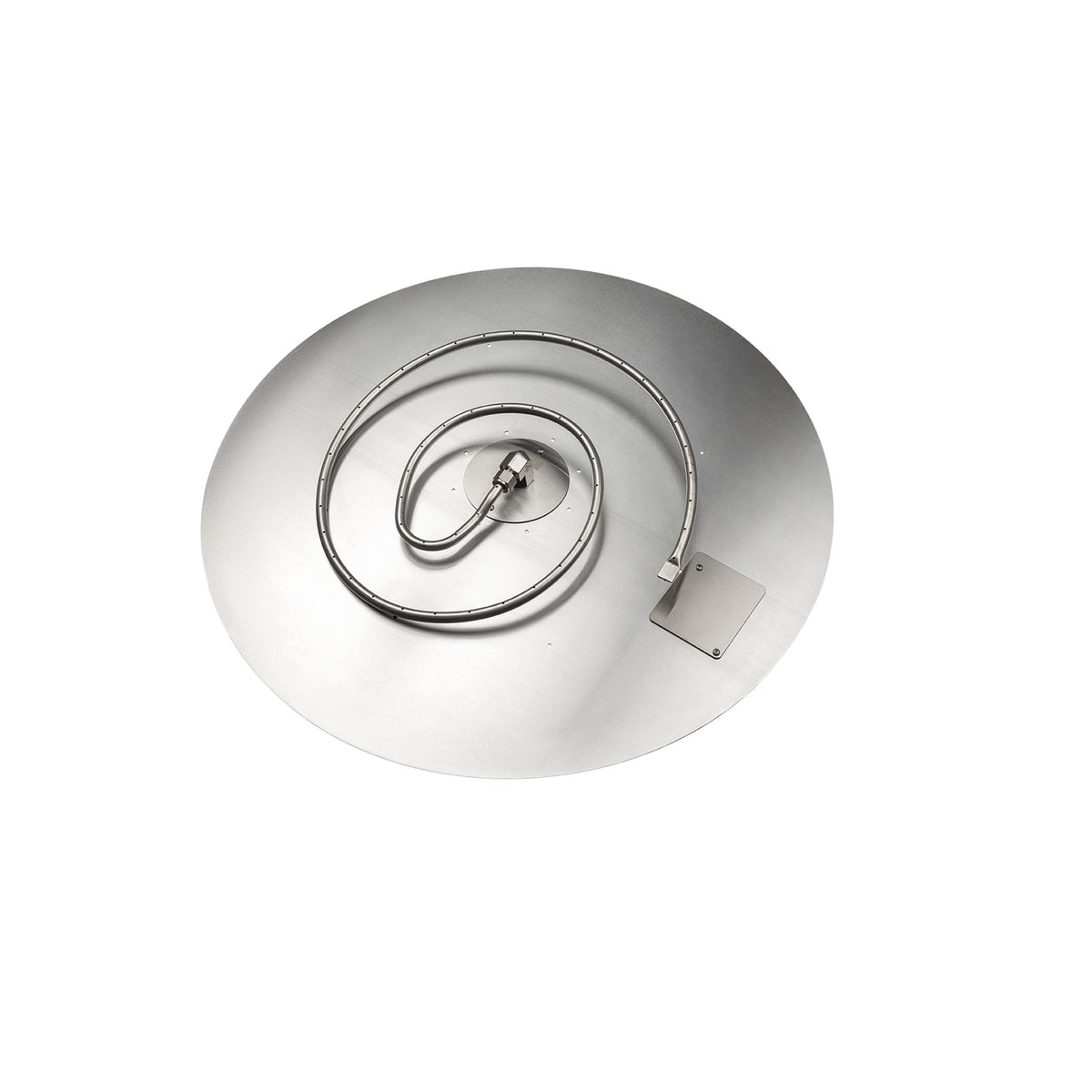

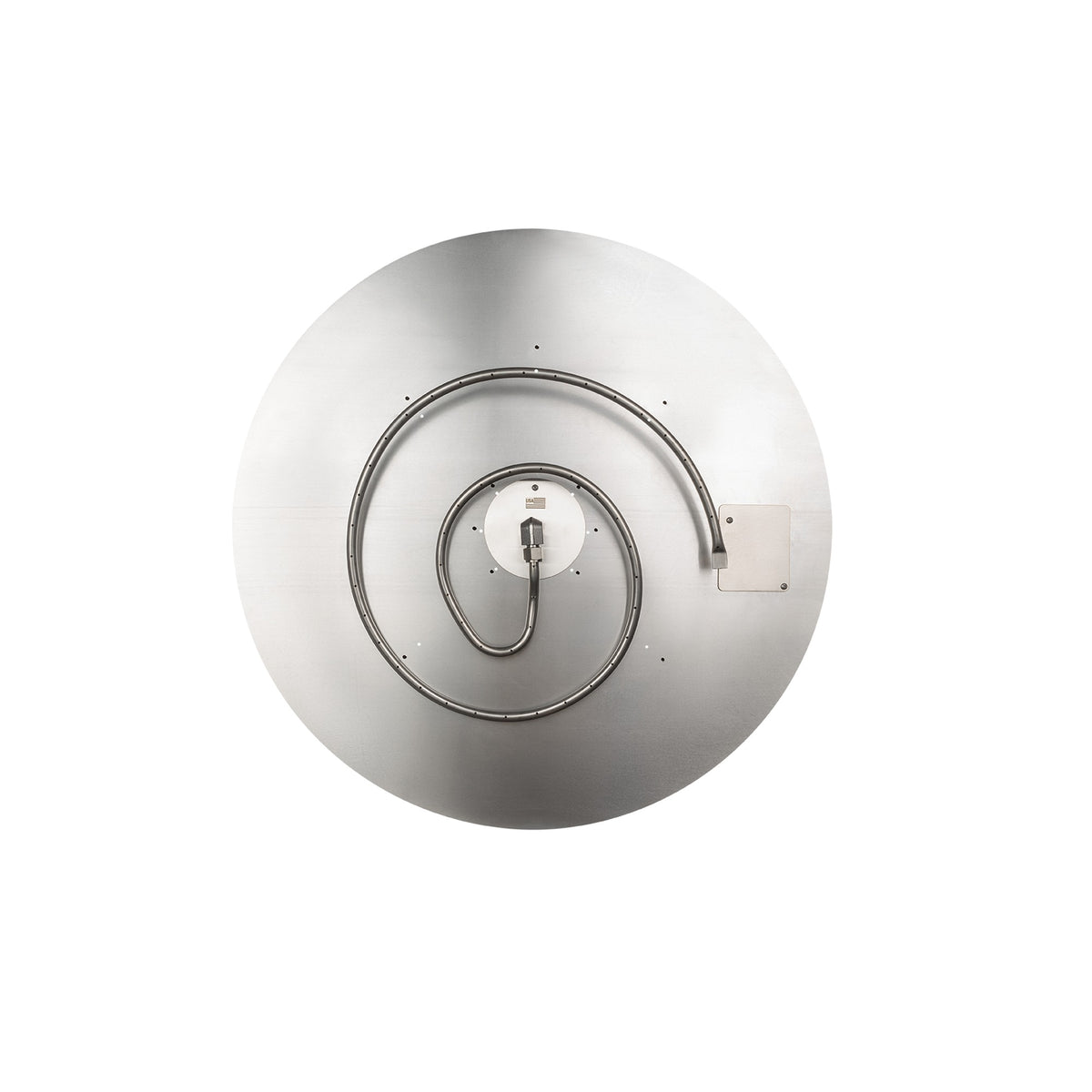

Fire by Design round flat stainless steel burner pan with burner

Fire by Design AWEIS electronic ignition system

Fire by Design battery powered ignition system kit

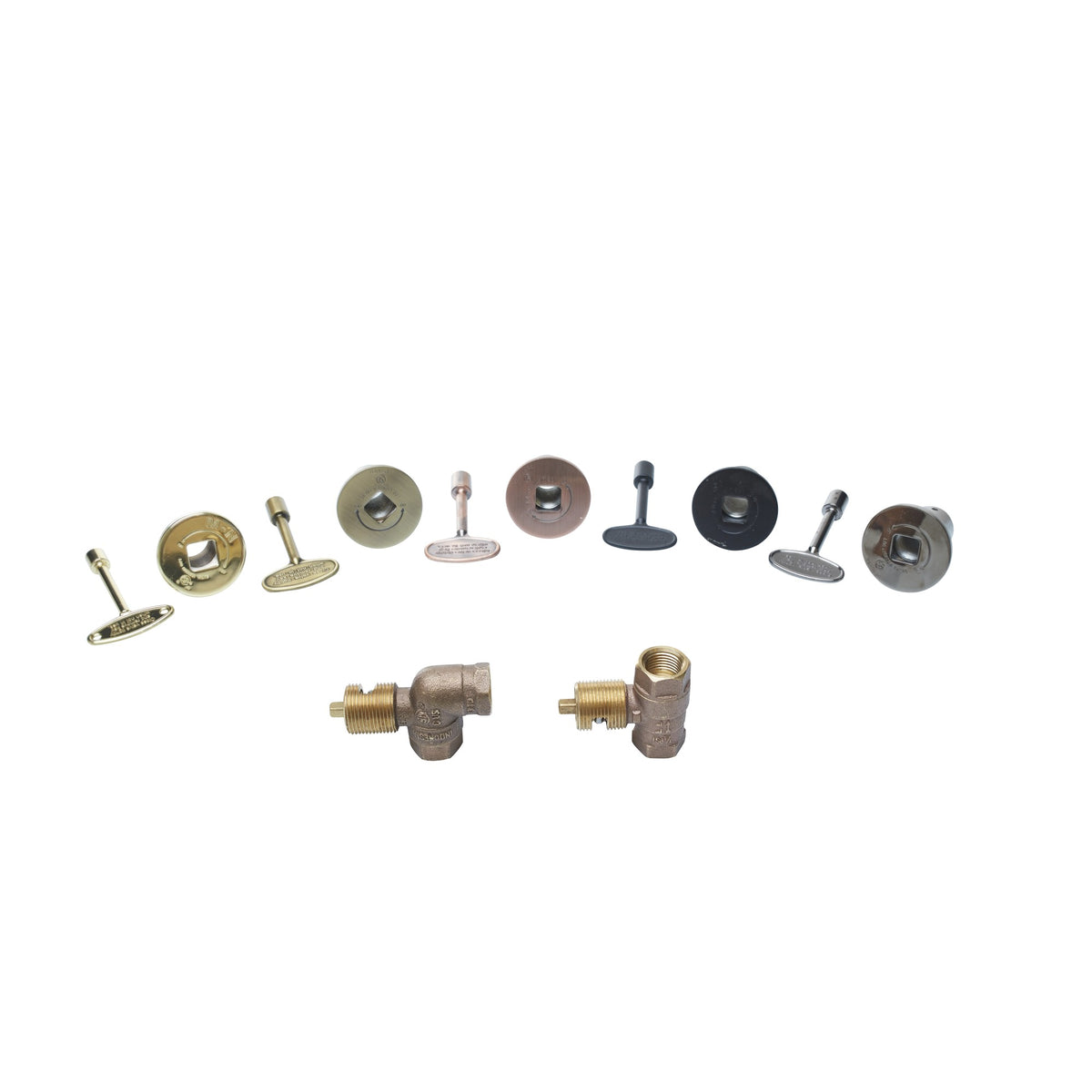

Fire by Design key valves in available finishes (manual light kits include the black key valve)

The Fire by Design Round Flat Burner Pan & Stainless Steel Fire Ring Kit is a complete gas burner system for custom round fire pits, fire tables and fire features. It pairs a 16 gauge stainless steel flat burner pan with a 304 stainless steel fire ring and your choice of ignition system.

Available in 5 pan sizes from 18" to 48", with five ignition options, for natural gas or liquid propane.

Ignition Options

24V AWEIS – All Weather Electronic Ignition System with a field serviceable pilot burner. The 24V transformer is included.
30VDC AWEIS – All Weather Electronic Ignition System with a field serviceable pilot burner, 30VDC system. The 30VDC power supply is included.
120V AWEIS – All Weather Electronic Ignition System with a field serviceable pilot burner. The 120V adaptor is included.
Battery Powered – Battery Powered Ignition System Kit with ignition control box and pilot burner, AA waterproof battery box and control panel with rocker switch and LED.
Manual Light – Black key valve for manual lighting.

Product Features

Complete Burner System – Burner pan, burner, ignition system and gas line(s) supplied together; exact components depend on the selected ignition.
304 Stainless Steel Burner – Fire ring burner sized to each pan.
16 Gauge Stainless Steel Pan – With opening for a pilot burner.
Five Ignition Options – 24V, 30VDC and 120V AWEIS electronic ignition, battery powered ignition or manual light.
Natural Gas or Propane – NG kits include an NG orifice; LP kits include an LP air mixer.

Specifications

Specification	Details
Product	Fire by Design Round Flat Burner Pan & Stainless Steel Fire Ring Kit
Model Numbers	24V AWEIS: RFBP18-KITNG / RFBP18-KITLP 30VDC AWEIS: 30-RFBP18-KITNG 120V AWEIS: 120-RFBP18-KITNG Battery Powered: BP-RFBP18-KITNG Manual Light: RFBP18-KITNG-ML (Example shown for the 18" size; each variant's model number is shown as its SKU.)
Burner Pan	Round flat burner pan, 16 gauge stainless steel, with opening for pilot burner
Burner	Fire ring, 304 stainless steel
Sizes & BTU	18" pan with 6" fire ring – 43,000 BTU, 1/2" inlet 24" pan with 12" fire ring – 85,000 BTU, 1/2" inlet 30" pan with 18" fire ring – 162,000 BTU, 1/2" inlet 36" pan with 24" fire ring – 170,000 BTU, 1/2" inlet 48" pan with 36" fire ring – 238,000 BTU, 3/4" inlet
AWEIS Capacity	Standard Capacity: 18", 24", 30", 36" pans High Capacity: 48" pans
Kit Includes	24V AWEIS: pan, burner, 24VAC AWEIS with field serviceable pilot burner, 24V transformer, gas line 30VDC AWEIS: pan, burner, 30VDC AWEIS with field serviceable pilot burner, 30VDC power supply, gas line 120V AWEIS: pan, burner, 120V AWEIS with field serviceable pilot burner, 120V adaptor, gas line Battery Powered: pan, burner, Battery Powered Ignition System Kit, gas line (plus 3/4" x 1/2" stainless steel hex reducer on 48" pans) Manual Light: pan, burner, black key valve, (2) gas lines
Gas Lines	18" – electronic and battery kits: (1) 18" whisper free flex gas line 1/2"; manual light kits: 1/2" black key valve and (2) 18" whisper free flex gas lines 1/2" 24" – electronic and battery kits: (1) 18" whisper free flex gas line 1/2"; manual light kits: 1/2" black key valve and (2) 18" whisper free flex gas lines 1/2" 30" – electronic and battery kits: (1) 18" whisper free flex gas line 1/2"; manual light kits: 1/2" black key valve and (2) 18" whisper free flex gas lines 1/2" 36" – electronic and battery kits: (1) 24" whisper free flex gas line 1/2"; manual light kits: 1/2" black key valve and (2) 18" whisper free flex gas lines 1/2" 48" – electronic and battery kits: (1) 36" flex line 3/4"; manual light kits: 3/4" black key valve and (2) 36" flex lines 3/4"
Fuel Type	Natural Gas or Liquid Propane
Liquid Propane Kits	LP kits include an LP air mixer. LP AWEIS kits also include a safety backup valve: 24V safety backup valve (24V AWEIS), 120V safety backup valve (30VDC AWEIS), 24V safety backup valve (120V AWEIS)
Fire Media Capacity	18" – 29 lbs fire glass, 2 bags lava rock or 1 bag rolled lava stone 24" – 52 lbs fire glass, 3 bags lava rock or 1 bag rolled lava stone 30" – 81 lbs fire glass, 5 bags lava rock or 2 bags rolled lava stone 36" – 117 lbs fire glass, 6 bags lava rock or 2 bags rolled lava stone 48" – 208 lbs fire glass, 11 bags lava rock or 4 bags rolled lava stone
Warranty	Burner pan: 5 years 304 stainless steel fire ring: 3 years Electronic ignition (AWEIS and battery powered): 3 years residential, 1 year commercial

Installation must be performed by a qualified, locally licensed gas professional.

Downloads

AWEIS Installation Instructions

Battery Powered AWEIS Installation Instructions

Fire by Design Round Flat Burner Pan & Stainless Steel Fire Ring Kit

$2,670.47
