Fire by Design Submersible Electronic Ignition System (SUBEIS)
Free Shipping • Ships in 2–3 Business Days
Have questions about this product?

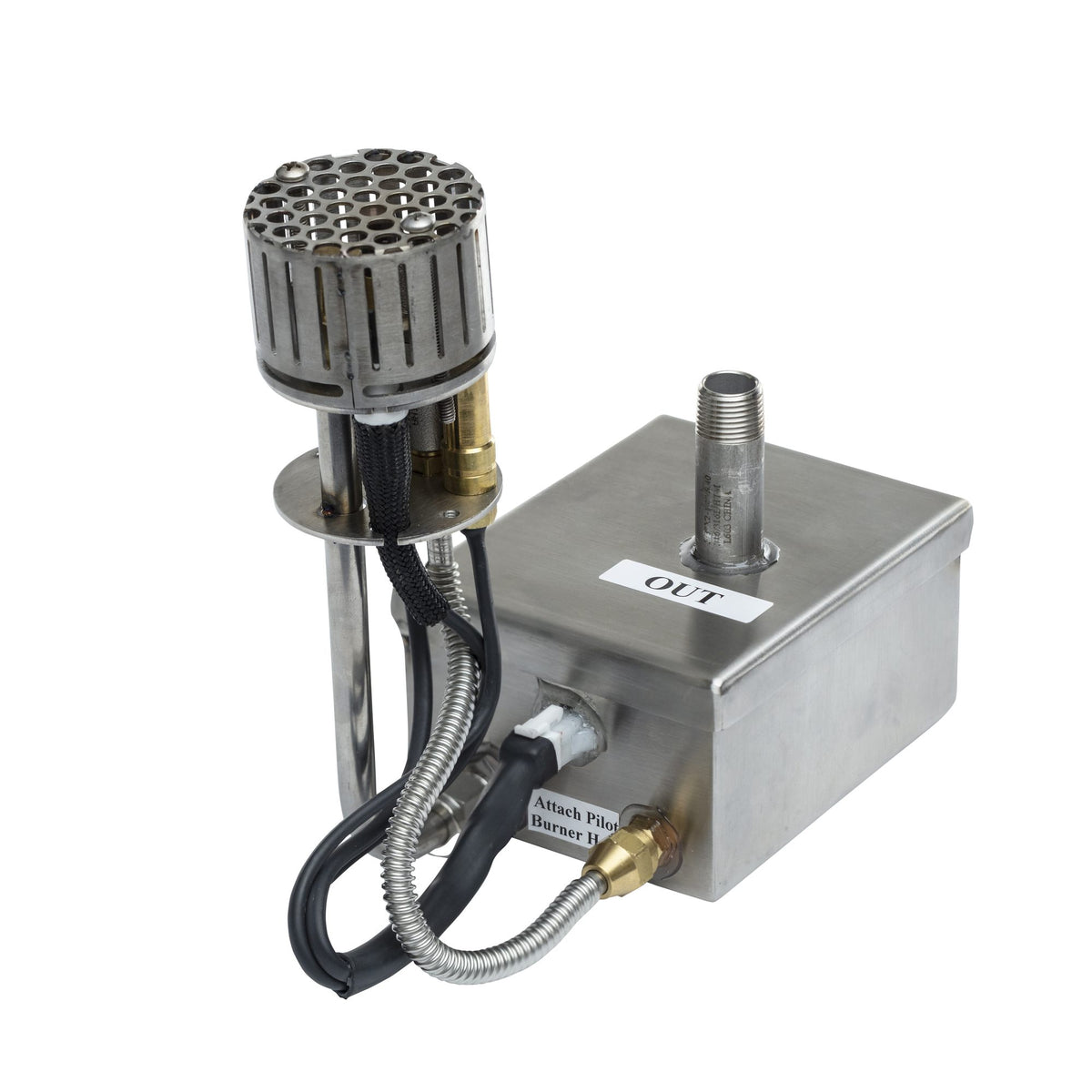

The Fire by Design Submersible Electronic Ignition System (SUBEIS) is the electronic ignition for fire on water features. It is designed to be installed and operated in water, where it ignites the gas from a submersible fire on water manifold so the flame appears on the surface of a pool, fountain or water feature.
Available in Standard Capacity and High Capacity, for 24VAC, 30VDC or 120VAC power, and compatible with natural gas and propane. The submersible manifold is sold separately; see our Fire on Water Burners.
Product Features
- Made for Water – Designed to be installed and operated in water; it will not function properly outside of water.

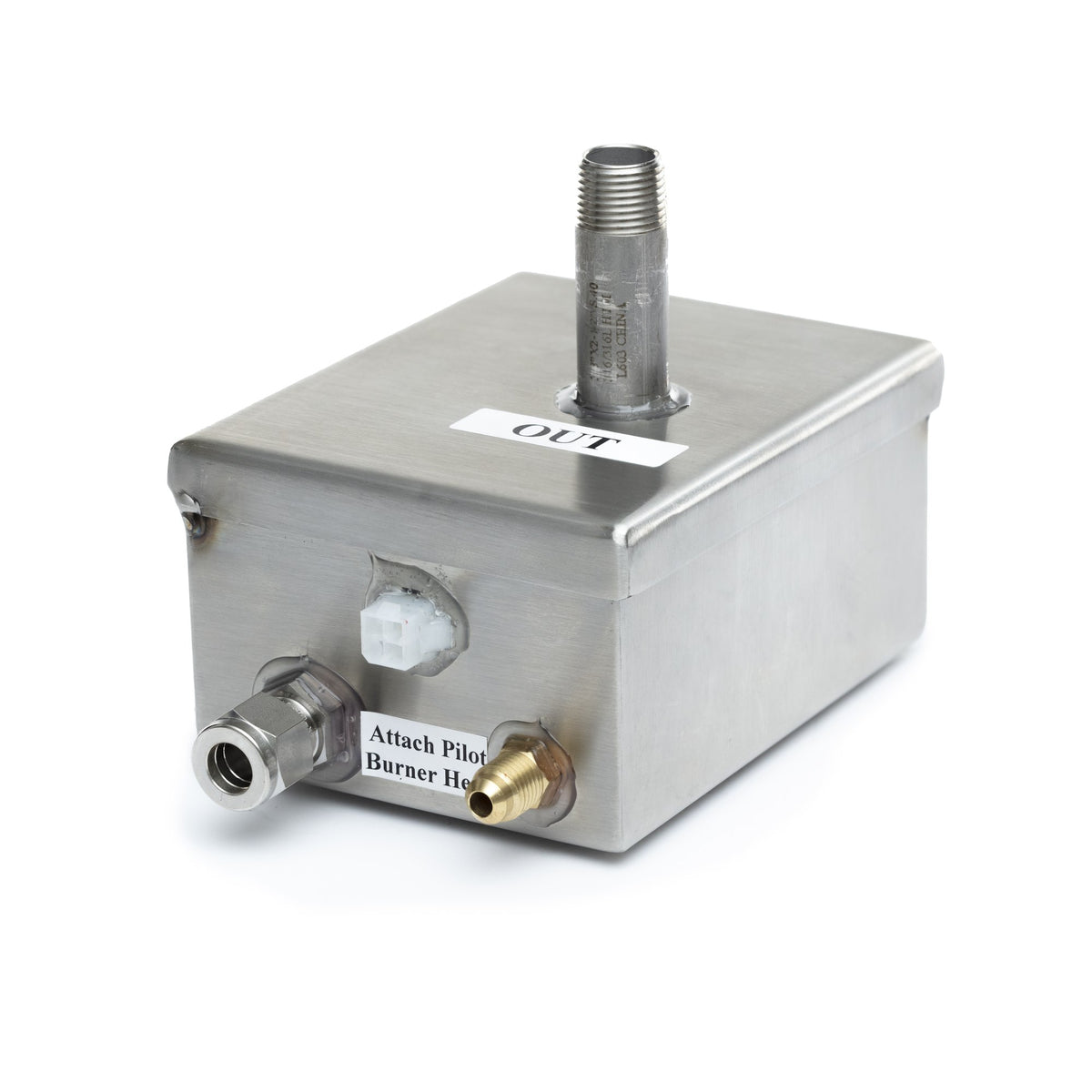

- Field Serviceable – Field serviceable fire on water pilot burner assembly and submersible ignition control module.
- Two Capacities – Standard Capacity up to 290K BTU with 1/2" inlet and outlet, or High Capacity up to 510K BTU with 3/4" inlet and outlet.
- Pool Automation – Can be wired to automated pool controllers such as Aqualink or Pentair IntelliTouch.
Specifications
| Specification | Details |
|---|---|
| Product | Fire by Design Submersible Electronic Ignition System (SUBEIS) |
| Model Numbers | Standard Capacity: SSC-FS (24VAC), SSC30-FS (30VDC), SSC120-FS (120VAC) High Capacity: SHC-FS (24VAC), SHC30-FS (30VDC), SHC120-FS (120VAC) |
| Capacity | Standard Capacity: up to 290,000 BTU High Capacity: up to 510,000 BTU |
| Inlet / Outlet | Standard Capacity: 1/2" FIP inlet and outlet High Capacity: 3/4" FIP inlet and outlet |
| Includes | Submersible ignition control module, fire on water pilot burner assembly and install instructions 24VAC models: 24 VAC transformer 120VAC models: 120 VAC adaptor 30VDC models: power supply not included, sold separately (30VDC Power Supply) |
| Fuel Type | Compatible with Natural Gas and Liquid Propane |
| Gas Pressure | Minimum 1 PSI (28" W.C.); will not operate properly on standard residential low-pressure gas. The size of the manifold determines the pressure required. |
| Water Level | Manifold submerged 3" below the water surface with holes facing down; the water must not reach the pilot burner cage |
| Manifold | Not included, sold separately |
| Warranty | Electronic ignition: 3 years residential, 1 year commercial (Fire by Design limited warranty) |
Installation must be performed by a qualified, locally licensed gas professional.
